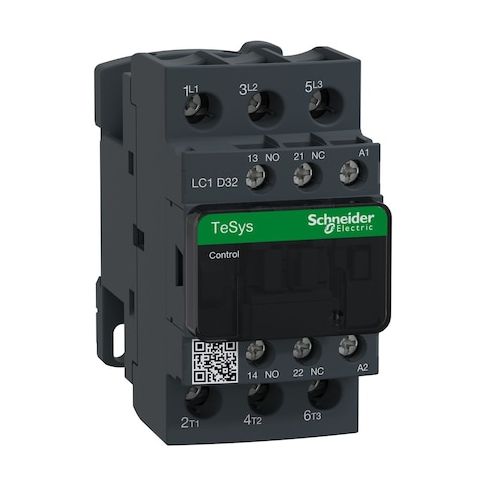

IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32X7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for control panel applications, offering a 3-pole, non-reversing configuration with a 600V AC coil rating. Its auxiliary contacts provide enhanced functionality, while the screw clamp terminals ensure easy and secure connections. Suitable for a wide range of applications, including industrial control systems, the TeSys Deca series contactor provides reliable operation up to 690V AC and 50/60 Hz, with IP20 protection and mechanical durability tested to 15 million cycles. Ideal for use in control panels, the IEC Magnetic Contactor is a trusted choice for industries requiring high-performance electrical control solutions.
Top product features:
- 3-pole configuration for three-phase applications
- Non-reversing operation for predictable and reliable switching
- Screw clamp terminals for secure and easy electrical connections
Top product applications:
- Control Panel Applications
- Industrial Automation Systems
- Electrical Distribution Panels
Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch rated for use in control panel applications within specified parameters. It has a 600V AC coil rating
- includes auxiliary contacts (1NC/1NO)
- utilizes screw clamp terminals. The unit mounts on DIN rail or plate and is part of the TeSys Deca series, rated for operation up to 690V AC within specified conditions and 50/60 Hz operation. It carries IP20 protection.
Key features
- - Poles: 3 (three-pole configuration)
- - Coil Voltage: 600V AC
- - Auxiliary Contacts: 2 total (1NC/1NO)
- - Reversing Capability: non-reversing configuration as specified
- - Mounting Style: DIN Rail, Plate
- - Terminal Connection Type: Screw Clamp
- - Maximum Voltage Rating: rated for operation up to 690V AC within specified conditions
- - Frequency: 50/60 Hz
- - IP Rating: IP20
- - Series: TeSys Deca
- - Mechanical Operating Durability: mechanical durability tested to approximately 15 million cycles under standard conditions
- - Electrical Operating Durability: electrical durability ratings are based on standardized testing conditions for respective load types
- - Phase: Three
- - Standards: CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60335-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- - Resistance Properties: Fire Resistant, Insulation Resistant
- - Overall Dimensions: 3.62 in (depth) × 3.35 in (height) × 1.77 in (width)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.13
- Package Width: 3.54
- Package Height: 4.29
- Package Weight: 0.82
