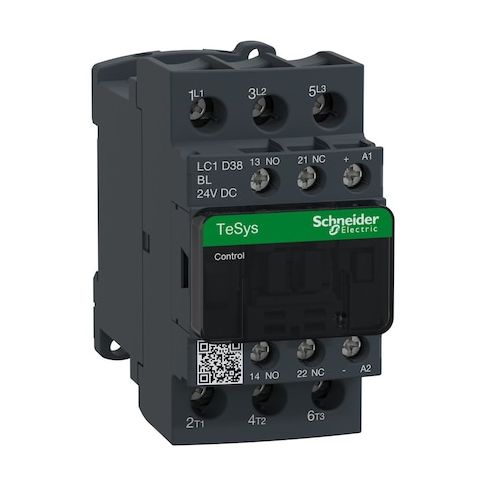

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38BL
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in accordance with IEC standards. Suitable for use in a variety of applications, including industrial control systems, motor control, and power distribution, this contactor provides a non-reversing, three-pole design with 1NC/1NO auxiliary contacts. Its 24V DC coil and screw clamp terminals make it easy to integrate into existing systems. With a high durability rating and resistance to fire and insulation, this contactor is ideal for use in demanding environments. Its compact design and DIN Rail or plate mounting options make it a versatile solution for many industrial applications.
Top product features:
- Operates from a 24V DC coil
- Includes two auxiliary contacts (1NC/1NO) arranged as 2 contacts total
- Has a non-reversing functionality
Top product applications:
- Industrial Automation
- Magnetic Contactor for Power Circuit Control
- Three-Phase Power Distribution
The IEC Magnetic Contactor is a three-pole, non-reversing, coil-driven switching device used to control power circuits in accordance with IEC standards. It operates from a 24V DC coil and includes two auxiliary contacts (1NC/1NO) arranged as 2 contacts total. The unit uses screw clamp terminals and can be mounted on DIN Rail or Plate. It is part of the TeSys Deca series and is rated for operation within the specified voltage and IP rating parameters.
- Coil voltage: 24V DC
- - Auxiliary contacts: 2 total (1NC/1NO)
- - Poles/Phase: 3 poles, three-phase
- - Reversing: Non-Reversing
- - Mounting/Terminals: DIN Rail, Plate
- Screw Clamp
- - Maximum voltage rating: 690V AC
- Frequency: 50 Hz
- IP rating: IP20
- - Series/Item: TeSys Deca
- IEC Magnetic Contactor
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Durability: Electrical 1,400,000 cycles
- Mechanical 30,000,000 cycles
- - Full Load Amps: Inductive 150 A
- Resistive 200 A
- - Full Load Current: Inductive 38 A
- Resistive 200 A
- - Horsepower (various voltages): 5 hp (single phase 240V)
- 10 hp (three phase 208V/240V)
- 20 hp (three phase 480V)
- 25 hp (three phase 600V)
- - Embedded surge suppressor: No
- - Resistance properties: Fire Resistant, Insulation Resistant
- - Auxiliary contact form: 1NC/1NO
- - Overall dimensions: Depth 3.98 in
- Height 3.35 in
- Width 1.77 in
- - Item: IEC Magnetic Contactor
- - Terminal connection: Screw Clamp
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.41
- Package Width: 3.62
- Package Height: 1.97
- Package Weight: 1.30
