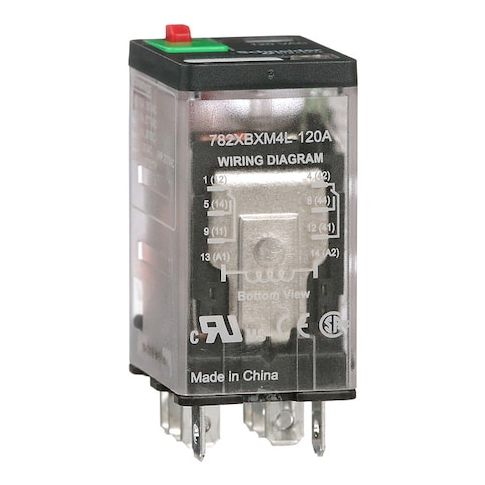

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector MPN:782XBXM4L-120A
The Schneider SE Relays 782 series general purpose relay is a robust and reliable solution for automation panels and controls. With a square base mounting design and clear cover with LED indication, this relay provides excellent structural support and easy visibility. Its gold flashed contacts reduce oxidation and increase shelf life, making it ideal for simultaneous control of separate circuits. Suitable for applications such as motor control, lighting, and HVAC, this relay is also easy to install and maintain, thanks to its socket-mounting option and blade terminal style. Perfect for a wide range of industries and applications.
Top product features:
- Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, giving simultaneous control of separate circuits.
- The relay has a clear cover with LED indication and locking push button for easy operation and status monitoring.
- The relay's socket-mounting option, with blade terminal style, simplifies installation and maintenance by allowing for easy connection and disconnection of wires.
Top product applications:
- Automation panels
- Controls
- Industrial machinery
The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.90
- Package Height: 1.10
- Package Weight: 0.10
