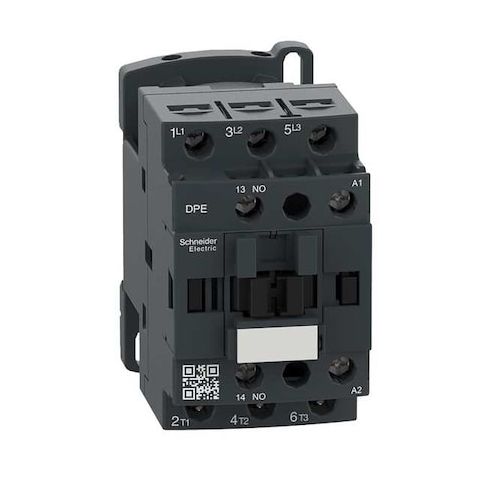

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE12U7
This Schneider Electric IEC Magnetic Contactor is a versatile device for controlling power circuits in electrical systems. Suitable for use in controlling motors, lighting, and resistive loads, it offers reliable switching and auxiliary contact functionality. The TeSys Easy design provides a compact and efficient solution for a wide range of applications, from small control systems to industrial processes. With its non-reversing operation and screw clamp terminals, this contactor ensures safe and easy installation and maintenance. Its 240V AC operation and 3-pole configuration make it an ideal choice for various industrial and commercial settings.
Top product features:
- This Schneider Electric IEC Magnetic Contactor (TeSys Easy) has three poles and three normally open (3 NO) main contacts.
- It operates with a 240 V AC coil and uses screw clamp terminals.
- It includes one normally open auxiliary contact.
Top product applications:
- Motor Control
- Lighting Control
- Resistive Load Control
This Schneider Electric IEC Magnetic Contactor (TeSys Easy) is a 3-pole, non-reversing device used to switch power circuits in electrical control systems. It operates with a 240 V AC coil and uses screw clamp terminals. The unit includes one normally open auxiliary contact and is intended for use in controlling motors, lighting, and resistive loads within applicable standards, rated for operation up to 690 V AC according to specifications, with a 50/60 Hz operating frequency.
Key features:
- - Poles and contacts: 3 poles
- 3 main contacts are normally open (3 NO)
- auxiliary contact: 1 NO
- - Coil and rated voltages: Coil 240 V AC
- rated for operation at specified coil voltages
- rated voltage ranges are provided based on product specifications
- - Reversing: Non-Reversing
- - Series/frame: TeSys Easy (IEC)
- - Electrical connections: Screw Clamp terminals
- - Mounting: DIN Rail, Plate
- Mounts On Plate, Rail
- - Enclosure/IP: Enclosure ratings conform to standard classifications without implying specific safety or environmental suitability unless specified elsewhere
- - Dimensions and weight: Depth 3.39 in
- Height 3.03 in
- Width 1.77 in
- Net weight 0.32 kg
- - Power ratings: Capacity ratings are based on testing conditions but do not imply guaranteed performance under all circumstances
- - Frequency and signals: Operational frequencies within the specified ranges
- - Other: Compliance indicates conformity with standards but does not guarantee specific performance or safety outcomes
- - Operating environment: Operating environment parameters specify limits but do not ensure safe operation outside these conditions
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.70
- Package Height: 5.70
- Package Weight: 13.61
