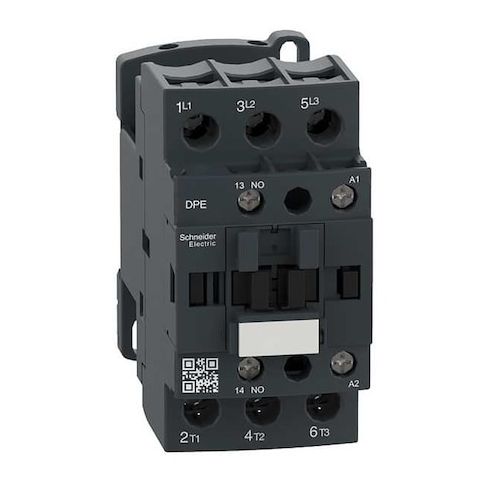

IEC Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:DPE38U7

• The Schneider Electric IEC Magnetic Contactor (TeSys Easy) is a 3-pole, non-reversing electrical switch rated for operation within IEC standards. The device operates with a coil voltage of 240 V AC

• supports switching of specified voltages within its rated parameters. The device is equipped with screw clamp terminals
• compatible with DIN rail or plate mounting options
• supplied without an enclosure.

  Key features

• - Poles/Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 1 auxiliary contact (1NO)
• - Coil Voltage: 240 V AC
• - Rated Voltage: 690 V AC
• 300 V DC
• - Reversing: rated as non-reversing (if applicable)
• - Series/Frame: TeSys Easy
• - Mounting/Terminals: DIN Rail, Plate
• Screw Clamp
• - Enclosure/NEMA: Suitable for indoor use per NEMA ratings listed
• actual enclosure requirements depend on application conditions.
• - Enclosure Rating: conforms to IP20 ingress protection rating under standard testing conditions.
• - Dimensions/Weight: Depth 3.62 in
• Height 3.35 in
• Width 1.77 in
• Net weight 0.375 kg
• - Frequency: 50/60 Hz
• - Durability: Electrical durability based on typical usage cycles under test conditions
• actual lifespan depends on operational environment.
• - Max. Operating Watts: Rated for operation at specified voltages within the given ranges according to manufacturer specifications.
• - Special Features: Without Built-In Suppressor Module
• Overvoltage Category III
• Minimum Switching Voltage 17 V (Signalling Circuit)
• Insulation Resistance 10 MΩ (Signalling Circuit)
• - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
• - Signalling/Includes: Includes auxiliary contacts
• Yes
