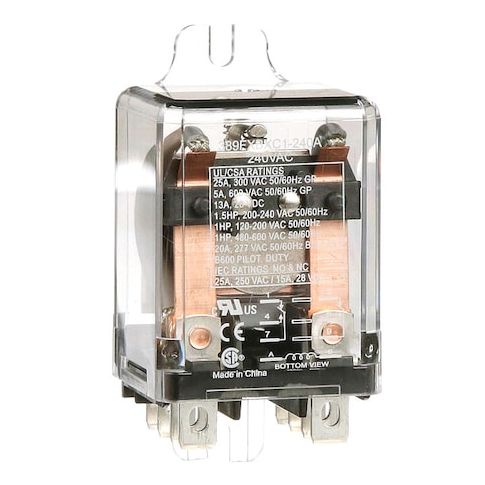

Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect MPN:389FXBXC1-240A
Flange Mount, Enclosed Power Relay, Octal, 25 A, 8 Pins, Quick Connect
The Schneider Octal Enclosed Power Relay is a reliable and efficient solution for a variety of applications, including industrial control systems, motor control, and power distribution. Its compact octal shape and flange mount design make it easy to install in tight spaces, while its 25A current rating and DPDT contact form provide robust switching capabilities. With a quick-connect electrical connection and mechanical flag status indicator, this relay offers easy maintenance and troubleshooting. Suitable for use in 120V and 240V AC applications, it can handle up to 1.5 horsepower and is ideal for use in harsh environments.
Top product features:
- Enclosed design provides protection from environmental factors
- Quick-Connect electrical connection allows for easy installation and removal
- DPDT contact form enables switching of two separate circuits with a single relay
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution Systems
Enclosed Power Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 8, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 2.25 in, Body Height 2.43 in, Body Width 2.5 in, Coil Resistance 7,200 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.50
- Package Height: 1.40
- Package Weight: 0.20
Product info last updated on January 15, 2026 5:29am UTC
Category: Industrial Electrical Controls and Automation
