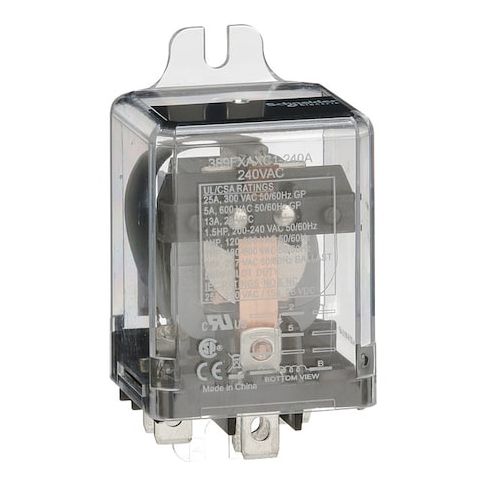

Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect MPN:389FXAXC1-240A
Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect
The Schneider Flange Mount, Enclosed Power Relay is a reliable and versatile solution for a wide range of applications, including industrial automation, HVAC, and power management. With a square base shape and quick-connect electrical connection, this relay is easy to install and maintain. Its high current rating of 25A and SPDT contact form make it ideal for controlling large motors and high-power devices. The relay also features a mechanical flag status indicator and is available in a variety of voltage ratings, making it suitable for use in a variety of environments and applications, including those with high inrush currents.
Top product features:
- Enclosed design provides protection from environmental factors
- Quick Connect electrical connection allows for easy setup and replacement
- SPDT contact form enables switching between two circuits
Top product applications:
- Industrial Control Panels
- Machine Automation Systems
- Power Distribution Units
Enclosed Power Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 7,200 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.50
- Package Height: 1.30
- Package Weight: 0.18
Product info last updated on March 31, 2026 4:11pm UTC
Category: Industrial Electrical Controls and Automation
