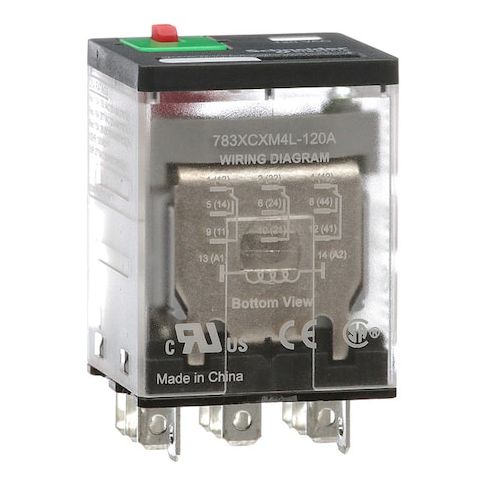

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector MPN:783XCXM4L-120A
Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector
The Schneider General Purpose Relay is a versatile and reliable component designed for a wide range of applications. Its 15A current rating and 11-pin Faston connector make it suitable for use in various industrial and commercial settings, including control panels and automation systems. The relay's LED indicator and mechanical flag provide visual and tactile confirmation of its status, while its push-to-test method ensures safe and easy testing. With a compact square base shape and socket mounting style, this relay is ideal for use in tight spaces and can handle up to 1/2 horsepower at 120V AC or 3/4 horsepower at 240V AC.
Top product features:
- Contact Form 3PDT
- Status Indicator LED Indicator
- Lockable Push-To-Test Method
Top product applications:
- Industrial Control Systems
- Automotive Electrical Systems
- Medical Equipment Control Panels
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.80
- Package Height: 1.50
- Package Weight: 0.14
Product info last updated on January 15, 2026 5:11am UTC
Category: Industrial Electrical Controls and Automation
