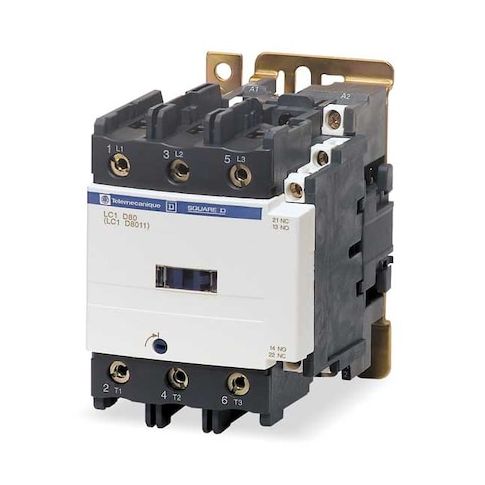

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D80L6
Free Shipping
In Stock
The IEC Magnetic Contactor from Schneider is a reliable and efficient solution for controlling motors and resistive loads in a variety of applications. Suitable for use in control panels and compatible with standard configurations, this three-pole, non-reversing contactor offers 1 normally open and 1 normally closed auxiliary contact. With a coil voltage of 208V AC and a high switching capacity, it can handle demanding tasks with ease. Ideal for use in industrial settings, this contactor provides a durable and long-lasting solution for applications such as HVAC, manufacturing, and power distribution. Its compact design and easy mounting make it a convenient choice.
Top product features:
- The IEC Magnetic Contactor has 1 normally open and 1 normally closed auxiliary contact, allowing for flexible control and monitoring of connected loads.
- The contactor is designed for use with coils rated at 208 V AC, making it suitable for a wide range of industrial and commercial applications.
- The contactor has a non-reversing configuration, ensuring that the load is always powered in the same direction, reducing the risk of damage or malfunction.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The IEC Magnetic Contactor (TeSys Deca) is a three‑pole, non‑reversing, electrically operated switch rated for operation within specified electrical parameters. It has 1 normally open and 1 normally closed auxiliary contact (2 total) and is designed for use with coils rated at 208 V AC. Classified as an IEC contactor, it is suitable for controlling motors and resistive loads within specified ratings and is compatible with standard control panel configurations as per manufacturer specifications.
Key features:
- - Poles and contacts: 3 main contacts (3 normally open) with 2 auxiliary contacts (1NO/1NC)
- - Coil voltage: 208 V AC
- - Reversing: non-reversing configuration (if applicable)
- - Series/format: IEC Contactor, TeSys Deca
- - Electrical characteristics: 60 Hz, Three-phase
- - Enclosure/IP: IP20
- No Enclosure
- - Mechanical/electrical durability: 10 Mcycles mechanical
- 1,500,000 cycles (80 A AC-3, <440 V) and 0.8 Mcycles (125 A AC-1, <440 V)
- - Power and currents: rated horsepower capacities are based on specific voltage conditions
- refer to technical specifications for detailed ratings
- - Rated voltages: rated voltages are within specified operational limits according to manufacturer data
- - Rated making capacity: maximum switching capacity under specified test conditions
- actual performance may vary depending on application conditions
- - Physical dimensions and weight: Depth 5.12 in
- Width 3.35 in
- Height 5.00 in
- Net weight 1.59 kg
- - Connection and mounting: Screw Clamp terminals
- Mounting on DIN Rail or Plate
- Mounts on Plate, Rail
- - Additional notes: Includes protective cover
- Embedded surge suppressor not present
- Hold current 22 VA
- Inrush 220 VA
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 5.30
- Package Height: 5.50
- Package Weight: 3.52
