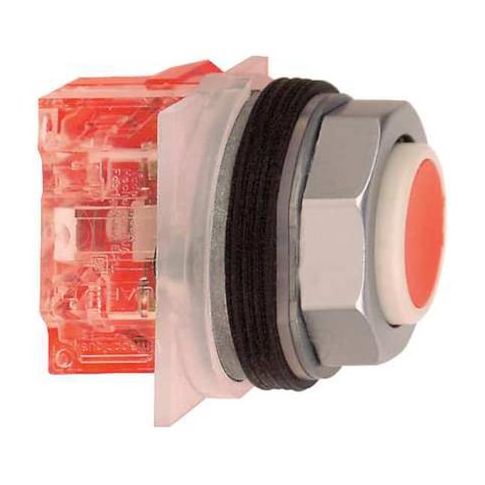

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Red MPN:9001KR3RH6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0871561
Push Button Operator, Extended, Momentary Action, Not Applicable Release, Non-Illuminated, Red
This Schneider Extended Push Button Operator is designed for use in a variety of applications, including industrial control systems, machinery, and equipment. Its momentary action and extended button type provide a clear and intuitive interface for operators, while its metal head and chrome-plated zinc die-cast bezel ensure durability and resistance to wear. With a rating of 10A @ 600V AC and NEMA contact rating designation A600/Q600, this operator meets the demands of high-voltage applications. Its compact design and IP66 rating make it suitable for use in harsh environments, making it an ideal choice for industrial settings.
Top product features:
- Extended Push Button Operator with Momentary Action
- Non-Illuminated Operator
- IP66 Rating for Dust and Water Resistance
Top product applications:
- Industrial Control Panels
- Machine Tools
- Automated Manufacturing Systems
Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.00
- Package Height: 2.10
- Package Weight: 0.26
Product info last updated on January 15, 2026 4:53am UTC
Category: Industrial Electrical Controls and Automation
