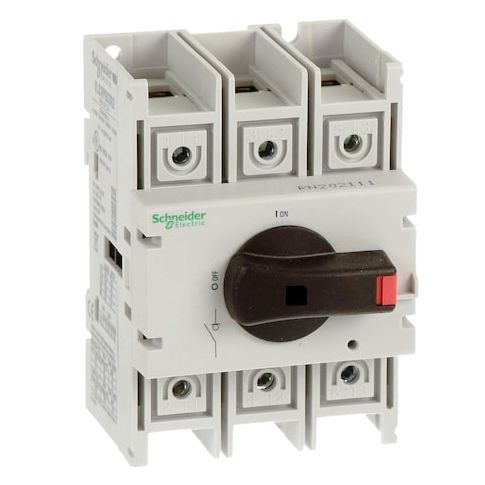

Disconnect Switch, Nonfusible, 3P, Three Phase, NEMA 1, 12, 3R, 4, 4X, Indoor, Rotary Handle MPN:VLS3P063R2
The Schneider Electric VLS3P063R2 Safety Disconnect Switch is a reliable and efficient solution for interrupting electric current flow in industrial settings. Primarily used in manufacturing, construction, and energy production, this device reduces the risk of accidental startups or electrical shocks during servicing operations. With a robust design and breaking capacity of up to 504 A at 690V AC-23A, it ensures safe and controlled shutdowns. Suitable for use in temperatures ranging from -25 to 55°C, this switch is ideal for applications where electrical safety and reliability are paramount. Its compact design and durable construction make it a valuable addition to any industrial operation.
Top product features:
- Disconnects electric current flow to specific circuits or equipment
- Accommodates various types and sizes of terminal connections for solid and flexible wires
- Interrupts maximum currents at specified voltages with a breaking capacity of 94.5 A at 690V AC-21A to 504 A at 690V AC-23A
Top product applications:
- Manufacturing settings to reduce the risk of accidental startups or electrical shocks during servicing operations
- Construction settings to minimize the risk of electrical accidents during maintenance work
- Energy production settings to ensure safe shutdown and startup of equipment
The SCHNEIDER ELECTRIC - VLS3P063R2 is a Safety Disconnect Switch intended for the interruption of electric current flow to specific circuits or equipment. Primarily used in industrial settings such as manufacturing, construction, and energy production, this device is used with the aim to reduce the risk of accidental startups or electrical shocks during servicing operations.
- Ambient Air Temperature For Operation: The switch is rated for operation within an air temperature range of -25-55°C.
- Breaking Capacity: With a breaking capacity ranging from 94.5 A at 690V AC-21A to 504 A at 690V AC-23A, the switch is designed to interrupt maximum currents at specified voltages.
- Connections-Terminals: The switch accommodates various types and sizes of terminal connections including power circuit screw clamp terminals for both solid (50-50 mm²) and flexible wires (70-70 mm²).
- Contact Form & Composition: The arrangement includes three normally open contacts indicating how many circuits it can control.
- Current Rating: It has a current rating of 63 A, indicating its design specification for carrying electrical current.
- Mechanical Durability & Robustness: Designed in accordance with IEC standards for resistance against physical stresses such as vibrations and shocks. Its design allows up to 30000 operational cycles under normal usage conditions.
- Housing Material & Resistance Properties: Constructed from non-metallic material tested for fire resistance up to temperatures of 960°C in accordance with IEC standards
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.50
- Package Height: 3.00
- Package Weight: 0.90
