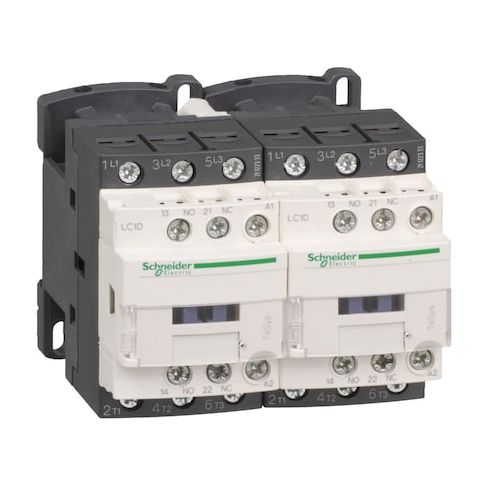

IEC Magnetic Contactor, 1NC/1NO, 110V DC, 3 P, Reversing, Screw Clamp MPN:LC2D12FD
Free Shipping
In Stock
The Schneider Electric TeSys Deca LC2D IEC magnetic contactor is a reliable and efficient solution for reversing applications in various industries. Suitable for use with motors and resistive loads, this 3-pole device features a 110 V DC coil, 1NC/1NO auxiliary contacts, and built-in bidirectional peak limiting diode suppression. The unit is preassembled with a reversing power busbar and uses screw clamp terminals for easy wiring. Its compact design and IP20 front-face protection make it ideal for mounting on plates or rails, while its high electrical ratings and robust construction ensure reliable operation in harsh environments.
Top product features:
- The Schneider Electric TeSys Deca LC2D has a built-in bidirectional peak limiting diode suppressor for coil suppression.
- It has 1NC/1NO auxiliary contacts that are mechanically linked for a reliable contact configuration.
- It is rated for operation with motors and resistive loads up to 690 V AC or 300 V DC.
Top product applications:
- Reversing motor control applications
- Control of resistive loads
- High-inertia motor control
The Schneider Electric TeSys Deca LC2D is an IEC magnetic contactor rated for use in reversing applications within specified parameters. It is a 3-pole device with 1NC/1NO auxiliary contacts and a 110 V DC coil. The unit ships preassembled with a reversing power busbar and uses screw clamp terminals for wiring. It is rated for operation with motors and resistive loads within specified ratings, and is mountable on plate or rail with an included protective cover and IP20 front-face protection.
- Coil voltage: 110 V DC
- coil suppression: built-in bidirectional peak limiting diode suppressor
- - Auxiliary contacts: 1NC/1NO
- mechanically linked 1 NO + 1 NC (IEC 60947-5-1)
- - Poles/Action: 3P
- intended for reversing configurations (if applicable)
- - Device presentation: Preassembled with reversing power busbar
- - Terminals: Screw Clamp Terminals
- - Mounting/Protection: Plate, Rail mounting
- conforms to IP20 ingress protection rating (does not imply safety or suitability beyond standard classification)
- protective cover included
- - Range/Series: TeSys
- TeSys Deca
- LC2D
- - Electrical ratings: Rated voltage power circuit up to 690 V AC / 300 V DC
- Full Load Current (Resistive) 25 A
- Rated making capacity 250 A at 440 V (Power Circuit)
- 140 A (DC/AC Signalling Circuits)
- - Standards: EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- CSA (and related standards)
- - Physical/weights: Height 77 mm
- Width 90 mm
- Depth 95 mm
- Net weight 1.027 kg
- - Environmental/temperature: Operation -40 to 60°C (60–70°C with derating)
- Storage -60 to 80°C
- - Contact configuration: 3 NO contacts (pole contact composition)
Additional Information
- Country of Origin: SG
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.52
