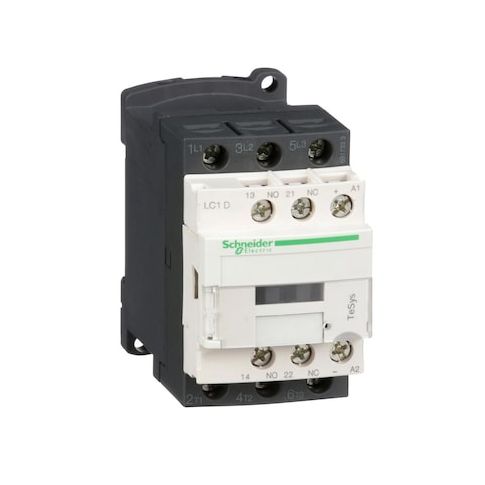

IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09JD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and switching electrical circuits. Designed for use in a variety of applications, including industrial and commercial settings, this contactor provides a safe and reliable way to manage power. With its 12V DC coil and 3-pole non-reversing design, it can handle high currents and provide fast switching times. Its compact size and robust construction make it ideal for use in tight spaces, and its protective cover and IP20 front face ensure safe and reliable operation. Ideal for use in applications such as motor control, lighting, and HVAC.
Top product features:
- The product has a 12 V DC coil.
- The product has screw clamp terminals for power and control wiring.
- The product has a non-reversing operation.
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within the specified electrical parameters. It includes a 12 V DC coil and auxiliary contacts as specified in the product specifications, with screw clamp terminals for power and control wiring. Includes a protective cover and is part of the TeSys Deca family (LC1D)
- intended for use within its rated applications as specified by manufacturer guidelines.
Key features
- - Coil and contacts: includes a 12 V DC coil and auxiliary contacts as specified in the product specifications
- main contacts 3 NO
- non-reversing.
- - Connections and mounting: Screw clamp terminals
- mounting on plate and/or rail.
- - Protection and housing: Protective cover included
- IP20 front face
- THIEC 60068-2-30 protective treatment.
- - Electrical ratings: conforms to specified voltage ratings
- actual performance depends on proper installation and usage conditions.
- - Power and current: rated capacities are based on standardized testing conditions
- actual performance may vary depending on application specifics
- AC signalling 140 A
- DC signalling 250 A
- utilisation category AC-1, AC-3, AC-4, AC-3e.
- - Short-time withstand and switching: 105 A (40°C, 10 s, Power)
- 210 A (40°C, 1 s, Power)
- 30 A (40°C, 10 min, Power)
- 61 A (40°C, 1 min, Power)
- signalling circuit values include 100 A/1 s, 120 A/500 ms, 140 A/100 ms.
- - Mechanical and thermal: Mechanical durability 30 Mcycles
- hold-in power 5.4 W
- time to operate closing 53.55–72.45 ms and opening 16–24 ms
- non-overlap time 1.5 ms.
- - Physical and standards: Width 45 mm
- height 77 mm
- depth 95 mm
- net weight 0.48 kg
- operating altitude 0–3000 m (0–9842.5 ft)
- ambient temperature range −40 to 60°C (derating 60–70°C)
- CAT III overvoltage category
- standards include EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, and others. Impulse withstand voltage: 6 kV. Includes protective cover and TeSys Deca range designation (LC1D).
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.17
