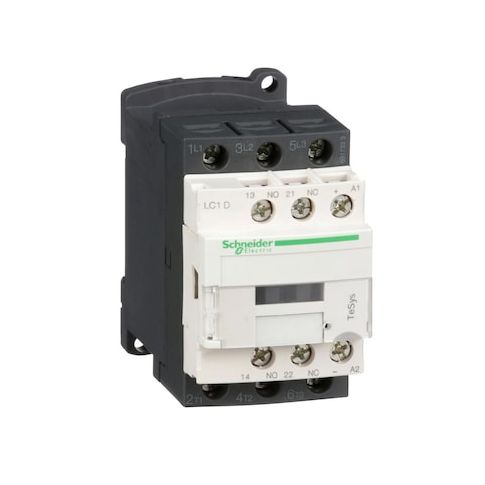

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09GD
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switch for various applications, including control and protection of motors, solenoids, and other loads. Its non-reversing design ensures safe and consistent operation, while the 1NC/1NO auxiliary contacts provide additional control and monitoring capabilities. Suitable for use in industrial and commercial settings, this contactor offers a high level of protection against overvoltage and meets strict safety standards. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems, making it an ideal solution for a wide range of applications and industries.
Top product features:
- 3-pole non-reversing switch
- 1NC/1NO auxiliary contacts
- Screw clamp terminals
Top product applications:
- Power Distribution Panels
- Industrial Automation Systems
- Solar Power Inverters
The IEC Magnetic Contactor (LC1D series) is a 3-pole, non-reversing switch rated for operation within specified load types and conditions. It features 1NC/1NO auxiliary contacts, a 125 V DC coil, and screw clamp terminals. The unit mounts on plate or rail.
Key features
- - Series: LC1D
- - Poles: 3
- - Auxiliary contacts: 2 (1NC/1NO)
- - Coil voltage: 125 V DC
- - Rated voltage: 690 V AC / 300 V DC
- - Mounting: Plate, Rail
- - Electrical connection: Screw Clamp
- - IP rating: IP20
- - Includes protective cover: Yes
- - Net weight: 0.48 kg
- - Fusing: rated fusing capacities as specified
- actual fuse ratings should be selected according to application requirements
- - Full load current - Resistive: rated for resistive loads up to 25 A under specified conditions
- - Overvoltage category: CAT III
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GL, BV, LROS, CCC, DNV, RINA, CSA, GOST, UKCA, THIEC 60068-2-30
- - Maximum temperature rating: as defined by testing standards
- actual operating temperature should be within manufacturer specifications
- - Dimensions: Height 77 mm, Width 45 mm, Depth 95 mm
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.16
