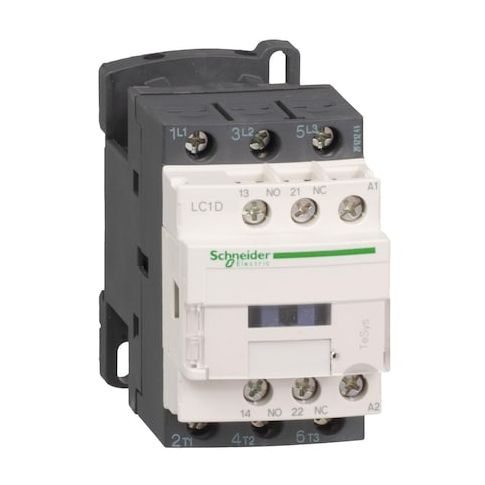

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09FE7

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is an IEC magnetic contactor rated for switching within specified voltage and current ranges.

  - Coil voltage: 48 V AC

• - Poles: 3P
• - Reversing capability: Non-Reversing
• - Auxiliary contacts: 1NC/1NO
• - Auxiliary contact type: mechanically linked 1 NO + 1 NC
• mirror contact 1 NC
• - Terminals: Screw Clamp (power and control circuits)
• - Range/Series: TeSys Deca, LC1D
• - IP rating: IP20
• - Protective cover: Comes with (note: does not imply safety guarantee)
• - Rated insulation voltage: rated for operation at voltages up to 690 V as specified
• - Rated operational voltage: rated for operation within the specified voltage ranges
• - Full load current: rated for currents up to 9 A (Inductive)
• 25 A (Resistive) under specified conditions
• - Rated making capacity: capable of handling currents up to 250 A at 440 V (Power)
• 140 A (AC Signalling)
• 250 A (DC Signalling) when used within specifications
• - Rated short-time withstand current: 105 A (40°C, 10 s)
• 210 A (40°C, 1 s)
• 30 A (40°C, 10 min)
• 61 A (40°C, 1 min)
• 100 A (signalling, 1 s)
• 120 A (signalling, 500 ms)
• 140 A (signalling, 100 ms)
• - Impedance: 2.5 mΩ
• - Impulse withstand voltage: 6 kV tested for impulse withstand voltages up to 6 kV per standards, but not guaranteed under all conditions
• - Max load power: rated for loads within 2.2 kW to 5.5 kW, depending on voltage and AC-3/AC-3e, per configurations and ratings
• - Utilisation category: AC-1
• AC-3
• AC-3e
• AC-4
• - Operating temperature range: designed for operation within the specified temperature ranges, with derating applied beyond certain temperatures
• - Mounting: Rail, Plate
• - Mounts on: Plate, Rail
• - Net weight: 0.32 kg
• - Dimensions: Width 45 mm
• Height 77 mm
• Depth 86 mm
• - Inrush VA: 70 VA
• - Hold VA: 7.5 VA (60 Hz, 20°C)
• 7 VA (50 Hz, 20°C)
• - Inrush power: 70 VA
• - Terminals: Screw Clamp
• - Shock resistance: tested according to standards for shock resistance
• actual performance may vary depending on application conditions
• - Vibration resistance: tested according to standards
• actual performance may vary depending on application conditions
• - Protective cover: Comes with (note: does not imply safety guarantee)
• - Fire rating: UL 94 V1
• - Flame retardance: V1 conforming to UL 94
• - Series: LC1D
• - Standards: CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 508
• UL
• IEC 60335-1
• GOST
• RINA
• CSA
• BV
• LROS
• CCC
• GL
• UKCA
• THIEC 60068-2-30
• - Range of product: TeSys Deca
• - Rated voltage (operational): 690 V AC / 300 V DC
• - Protective treatment: THIEC 60068-2-30
