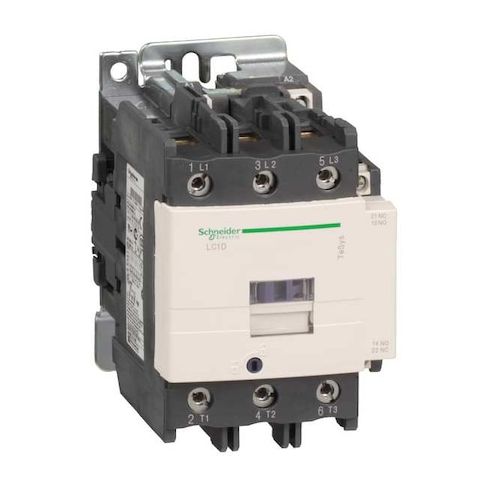

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D95G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for control panels. Designed for operation within IEC standards, this 3-pole, non-reversing contactor features a 120 V AC coil and auxiliary contacts configured as 1NO/1NC. Its screw clamp terminals are compatible with DIN Rail or Plate mounting, making it easy to integrate into various applications. Suitable for use in industrial control systems, the TeSys Deca series contactor provides a standardized solution for sizing and interchangeability. Its compact design and IP20 rated enclosure ensure reliable performance in a range of environments, from manufacturing to commercial settings.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing contactor with a 120 V AC coil.
- It features screw clamp terminals compatible with DIN Rail or Plate mounting.
- It has 2 auxiliary contacts configured as 1NO/1NC.
Top product applications:
- Industrial control systems
- Motor control centers
- HVAC systems
The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It is a 3-pole, non-reversing contactor with a 120 V AC coil and auxiliary contacts configured as 1NO/1NC (2 auxiliary contacts total). The unit features screw clamp terminals
- compatible with DIN Rail or Plate mounting
- IP20 rated. It is part of the TeSys Deca series and uses IEC standards for standardized sizing and interchangeability in control panels.
Key features
- - Coil voltage: 120 V AC
- - Poles / phase: 3 (three-phase)
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- - Reversing: Non-Reversing
- - Series/Style: TeSys Deca, IEC
- - Frequency: 50/60 Hz
- - Rated for operation up to specified voltages within the listed ranges.
- - Current ratings: Designed to operate at current levels specified.
- - Enclosure / mounting: Compatible with DIN Rail or Plate mounting
- IP20 rated enclosure.
- - Dimensions / weight: Depth 5.12 in
- Height 5 in
- Width 3.35 in
- Net weight 1.61 kg
- - Additional: Includes auxiliary contacts and protective cover
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.45
