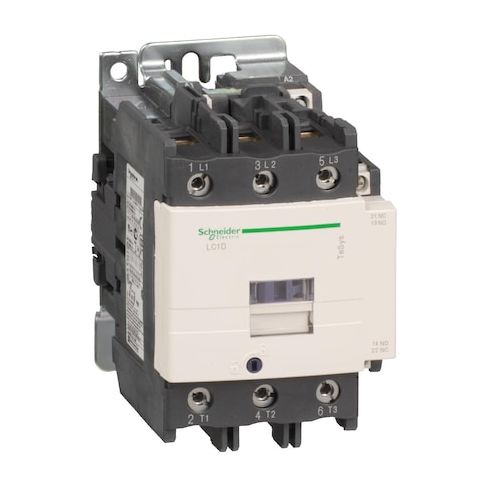

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D80M7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0850425
IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load applications. With its 3-pole, non-reversing design and 220V AC coil, it provides precise control and safety. The contactor features screw clamp terminals and a protective cover, ensuring secure and easy connections. Its compact dimensions and lightweight design make it ideal for a variety of industries, including manufacturing, HVAC, and power generation. The contactor's high-rated breaking and making capacity, as well as its thermal amperage and hold VA, make it a reliable choice for demanding applications.
Top product features:
- The product has a 3-pole design for controlling multiple circuits.
- The product has a non-reversing capability to prevent accidental motor direction changes.
- The product has screw clamp terminals for secure electrical connections.
Top product applications:
- Motor control
- Resistive-load
- Other applications not specified
Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with a 220 V AC coil.
- Poles: 3
- - Auxiliary contacts: 1NC/1NO
- - Electrical connection: Screw Clamp Terminals
- - Applications: motor control and resistive-load
- - Mounting: Plate, Rail
- - Protective cover: Included
- - IP Rating: IP20
- - Reversing capability: Non-Reversing
- - Series: LC1D
- - Coil voltage: 220 V AC
- - Fire rating: UL 94 V1
- - Rated breaking capacity: 1100 A @ 440 V (maximum under specified test conditions)
- - Rated making capacity: 140 A (AC Signalling), 250 A (DC Signalling), 1100 A @ 440 V (Power Circuit) per applicable standards
- - Dimensions: Width 85 mm
- Height 127 mm
- Depth 130 mm
- - Net weight: 1.59 kg
- - Operating times: typical values of 20 to 35 ms (Closing) and 6 to 20 ms (Opening) within the device’s rated specifications
- - Non-Overlap time: approx. 1.5 ms (typical value under testing conditions)
- - Thermal amperage: 10 A (60°C Signalling)
- 125 A (60°C Power)
- - Hold VA: 26 VA
- - Inrush VA: 245 VA
- - Insulation: Rated insulation voltages 600/1000 V (Power Circuit)
- 600/690 V (Signalling) — These values indicate ratings but do not guarantee insulation performance in all circumstances
- - Rated voltage: maximum rated voltages according to standards: 690 V AC, 300 V DC
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, GOST, RINA, CCC, CSA, BV, DNV, GL, LROS, UL, THIEC 60068-2-30
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.43
