IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:LC1D806G7

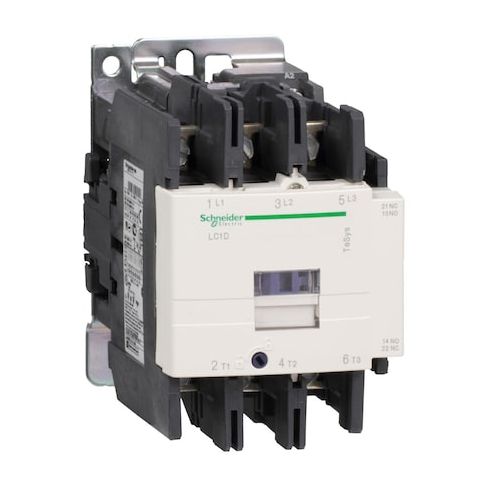

• The product is a Schneider Electric IEC Magnetic Contactor (LC1D TeSys Deca), a 3-pole, non-reversing device with a 1NC/1NO auxiliary contact and screw terminals. Rated for operation in motor control and resistive load switching applications. Compatible with a 120 V AC control voltage.

  Key features

• - Applications: motor control
• resistive load
• - Coil voltage: 120 V AC
• - Poles and contacts: 3 poles
• 3 NO pole contact composition
• includes auxiliary contacts configured as normally open (NO) and normally closed (NC) contacts
• - Electrical connections: Control circuit – lugs-ring terminals
• Power circuit – bars
• lugs-ring terminals
• Terminal connection type: Screw
• - Protection and enclosure: IP20 front face
• protective cover included
• - Mounting: Suitable for mounting on standard support rails or plates as specified
• - Series/range: Part of the LC1D series within the TeSys range of products
• - Protective fusing: Fused with appropriate ratings per application requirements
• - Rated currents (power circuit): Ie rated operational current 125 A (AC-1)
• 80 A (AC-3/AC-3e)
• - Making/short-circuit ratings: Meets IEC-rated making capacity and short-circuit withstand limits when used within specified conditions
• - Impedance and insulation: Has electrical characteristics consistent with industry standards for insulation and impulse withstand voltage
• - Physical dimensions and weight: Height 127 mm
• Width 85 mm
• Depth 130 mm
• Net weight 1.59 kg
• - Operating characteristics: Operates at typical cycle rates as specified, without guaranteeing specific performance under all conditions
• - Overvoltage and temperature: Designed to operate within specified environmental parameters
