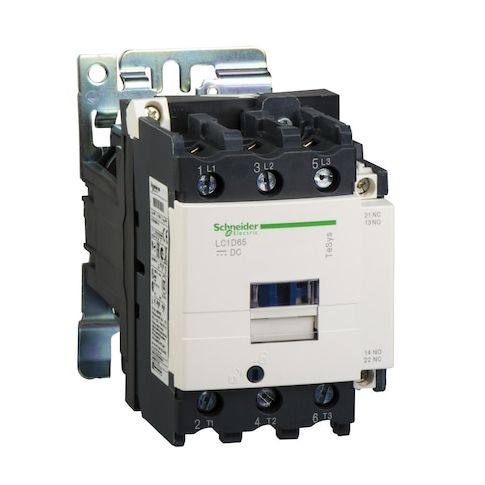

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D806BD

• The item is an IEC Magnetic Contactor from Schneider Electric (Series LC1D). It is a 3-pole, non-reversing device with a 24 V DC coil and an auxiliary contact form of 1NC/1NO. Rated for operation within the specified voltage ranges of 690 V AC and 300 V DC, it is designed for use with motor control and resistive loads within specified parameters in electrical control panels. The enclosure dimensions are 85 mm wide, 127 mm high, and 186 mm deep, and it weighs 2.59 kg. The unit includes a protective cover.

  - Poles: 3

• - Reversing: Non-Reversing
• - Coil voltage: 24 V DC
• - Auxiliary contact form: 1NC/1NO
• - Series: LC1D
• - Rated voltage: 690 V AC, 300 V DC
• - Application: Motor Control, Resistive Load
• - IP Rating: IP20
• - Fire rating: Complies with UL 94 V1 flammability classification (or omit if not a guarantee)
• - Includes protective cover: Yes
• - Mounting: Plate, Rail
• - Dimensions: 85 mm W × 127 mm H × 186 mm D
• - Net weight: 2.59 kg
• - Electrical connections: Control Circuit—Lugs/Ring Terminals
• Power Circuit—Bars, Lugs/Ring Terminals
• - Full Load Current: Inductive 80 A
• Resistive 125 A
• - Overvoltage category: Meets the overvoltage category standards as defined by applicable safety standards (without implying specific performance guarantees)
• - Impedance: Has an impedance of approximately 0.8 milliohms (note: this is a measured value, not a performance guarantee)
• - Impulse withstand: 8 kV
• - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, and others
• - Non-Overlap time: 1.5 ms
• - Insulation voltage: 600/1000 V (Power Circuit), 600/690 V (Signalling Circuit)
• - Terminal type: Screw
• - Working height: Up to 9842.52 ft
