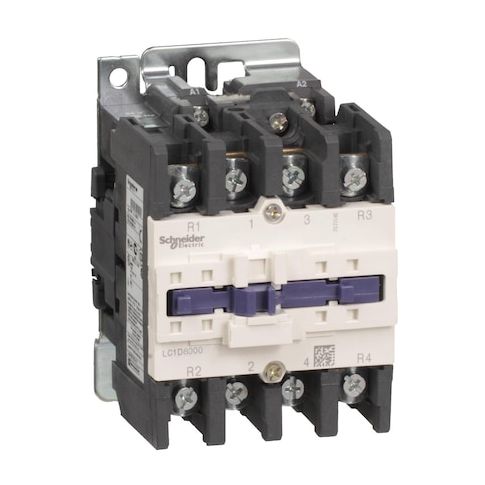

IEC Magnetic Contactor, 2NC/2NO, 110V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D80008F7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for switching resistive loads in various industrial applications. Its 4-pole design and non-reversing capability make it suitable for use in control circuits, while its 110V AC coil and screw clamp terminals provide easy installation and maintenance. With a high inductive and resistive current rating, this contactor can handle a wide range of loads, making it ideal for use in manufacturing, HVAC, and other industrial settings. Its compact size and durable design ensure long-lasting performance and minimize downtime.
Top product features:
- 4-pole switching capability
- 2NC/2NO auxiliary contacts for control and monitoring
- Screw clamp terminals for easy electrical connection
Top product applications:
- Motor Starters
- Industrial Automation Systems
- Power Distribution and Control Panels
The Schneider Electric IEC Magnetic Contactor is a 4-pole, non-reversing device rated for switching resistive loads within specified parameters. It features a coil rated for 110 V AC, 2NC/2NO auxiliary contacts, screw clamp terminals, and is part of the LC1D series with a rated voltage of 690 V AC.
Key features
- - Poles: 4
- - Auxiliary contact form: 2NC/2NO
- - Coil voltage: 110 V AC
- - Electrical connection: Screw Clamp Terminals
- - Series: LC1D
- - Reversing capability: Non-Reversing
- - Rated voltage: 690 V AC
- - IP rating: IP20
- - Fire rating: UL 94 V1
- - Dimensions: Depth 140 mm
- Height 127 mm
- Width 96 mm
- - Net weight: 1.84 kg
- - Full Load Amps: Inductive 80 A
- Resistive 125 A
- - rated making capacity of 1100 A at 440 V (Power Circuit)
- - Rated Short-Time Withstand Current: 640 A (10 s @ 40°C, Power Circuit)
- 990 A (1 s @ 40°C, Power Circuit)
- 135 A (10 min @ 40°C, Power Circuit)
- 320 A (1 min @ 40°C, Power Circuit)
- - Inrush VA: 245 VA
- - Hold VA: 26 VA
- - Impedance: 0.8 mΩ
- - Impulse withstand voltage: 8 kV
- - Typical operating times for closing and opening cycles: 20–35 ms for closing
- 6–20 ms for opening
- - Operating speed: 3600 cycles per hour
- - - 10 G (Closed)
- 8 G (Open) -> Note: replaced with general rating: Tested to withstand shocks up to specified G-forces under standard conditions
- - Mounting: Plate, Rail
- - Working height: Up to 9842.52 ft
- - Fuse amps: 200 A (Type 1 Power Circuit)
- 160 A (Type 2 Power Circuit)
- - Includes protective cover: No
- - Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- - Standards: EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA 60947-4-1, CSA 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, DNV-GL notes, THIEC 60068-2-30
- - Application: Resistive Load
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.06
