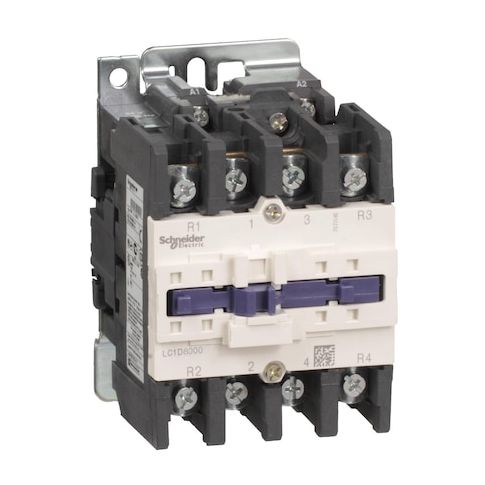

IEC Magnetic Contactor, 4NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D80004G6
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. Suitable for use in resistive-load applications, it supports power circuits up to 690 V AC or 300 V DC, making it ideal for use in industrial settings, commercial buildings, and residential areas. With its non-reversing design and four NO auxiliary contacts, it provides a high level of control and flexibility. Its compact design and screw clamp terminals make it easy to install and maintain, reducing downtime and increasing productivity.
Top product features:
- It uses a 120 V AC coil to open and close contacts.
- It includes four NO auxiliary contacts.
- It has a rated making capacity of 1100 A at 440 V.
Top product applications:
- Motor Control Circuits
- Control Panels and Systems
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switch designed to control power circuits. It uses a 120 V AC coil to open and close contacts and includes four NO auxiliary contacts. It is part of the TeSys Deca family (LC1D series) and uses screw clamp terminals for connections. Designed for use within specified voltage ranges in resistive-load applications, it supports power circuits up to 690 V AC or 300 V DC, with an IP20 enclosure and no protective cover included.
Key features
- - Coil voltage: 120 V AC
- - Poles and contacts: 4P
- main contacts 4 NO
- auxiliary contacts 4NO
- non-reversing
- - Terminals: Screw clamp
- - Mounting: Plate, rail
- - Protection and cover: IP20
- Protective Cover: Without
- - Range/series: TeSys Deca
- LC1D
- - Rated values: 690 V AC
- 300 V DC
- Uc insulation 600/1000 V
- - Power and current: Has a rated making capacity of 1100 A at 440 V
- - Fuse ratings: 200 A (Type 1 Power Circuit)
- 160 A (Type 2 Power Circuit)
- - Rated operational currents: as specified in product documentation
- - Mechanical/electrical durability: 10 Mcycles mechanical
- 0.8 Mcycles electrical
- - Physical: Height 127 mm
- Width 96 mm
- Depth 125 mm
- Weight 1.76 kg
- - Standards: EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, CSA, among others
- - Additional ratings: Utilisation Category AC-1, AC-3, AC-3e, AC-4
- Pollution Degree 3
- Inrush/hold values and other electrical specs available in attribute list
The description does not contain unqualified guarantees or promises about safety, longevity, or performance beyond standard specifications.
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.33
- Package Width: 5.51
- Package Height: 6.10
- Package Weight: 3.90
