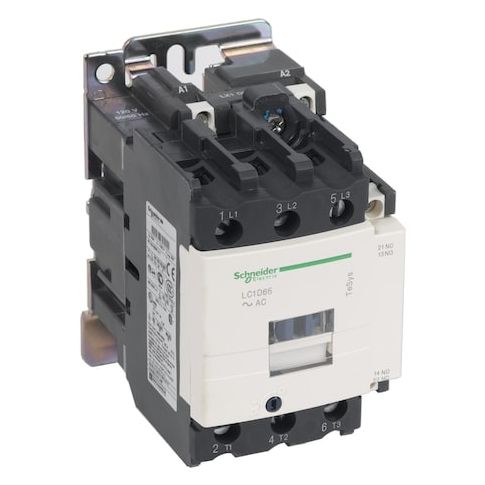

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65U7

• - Poles/operation: 3 poles

• non-reversing
• auxiliary contacts: 1NC/1NO
• - Coil and terminals: 240 V AC coil
• screw clamp terminals
• - Mounting: The unit is designed for mounting on plates or rails and includes a protective cover
• suitable for resistive load applications.
• - Series/type: LC1D
• Item: IEC Magnetic Contactor
• - Rated voltage: 690 V AC
• insulation ratings conforming to specified standards.
• - Load ratings: Load ratings are based on standard test conditions within specified parameters.
• - Short-time withstand: Short-time withstand currents are provided under test conditions as per applicable standards.
• - Fusing: Fuse ratings are specified according to standard classifications and intended use cases.
• - Protection/fire: IP2X
• UL 94 V1
• - Physical: Width 70 mm
• Depth 118 mm
• Height 122 mm
• Net weight 2.185 kg
• - Performance: Operating speed 3600 cycles/min
• Non-overlap time 1.5 ms
• - Electrical characteristics: Impedance 1.5 Ω
• - Max watts: multiple ratings by voltage/use category (e.g., 11 kW @ 400 V AC 50 Hz AC-4
• up to 37 kW at higher voltages)
• - Impulse/shock/vibration: These values indicate the tested impulse, shock, and vibration levels within standardized testing procedures.
• - Dimensions: Width 70 mm
• Height 122 mm
• Depth 118 mm (listed above)
