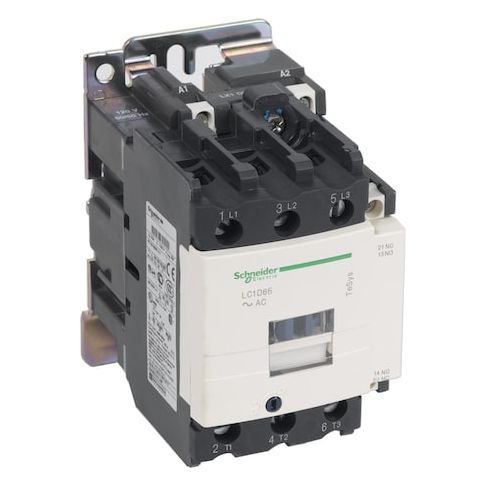

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65F7
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive loads in industrial settings. This 3-pole, non-reversing contactor features 1NC/1NO auxiliary contacts and operates at 110V AC coil voltage with a rated voltage of 690V AC. Its screw clamp terminals and compact dimensions make it easy to integrate into existing systems. With a full load current of up to 65A inductive and 80A resistive, this contactor can handle demanding applications. Suitable for use in a range of industries, including manufacturing, oil and gas, and renewable energy, this contactor provides reliable and efficient control.
Top product features:
- The product has 3 poles for controlling multiple circuits.
- It has 1NC/1NO auxiliary contacts for providing additional control and monitoring functions.
- It uses screw clamp terminals for easy and secure connection to wires.
Top product applications:
- Motor control
- Resistive load control
- Industrial automation
The item is an IEC Magnetic Contactor (3-pole, non-reversing) rated for operation at 110 V AC coil and 690 V AC rated voltage, with 1NC/1NO auxiliary contacts. It uses screw clamp terminals and is sized for motor control and resistive loads. Its dimensions are 85 mm wide, 127 mm high, and 176 mm deep, with a net weight of 2.185 kg.
- Poles: 3
- - Auxiliary contact form: 1NC/1NO
- - Coil voltage: 110 V AC
- - Rated voltage: 690 V AC
- - Series: LC1D
- Reversing: Non-Reversing
- - Mounting/Connection: Plate, Rail
- Screw Clamp terminals
- - Dimensions and weight: 85 mm W x 127 mm H x 176 mm D
- 2.185 kg
- - IP rating and flammability rating: IP2X
- meets the UL 94 V1 flammability standard (note: does not imply safety guarantee)
- - Full load current: Inductive 65 A
- Resistive 80 A
- - Rated making capacity: 140 A (AC Control Circuit)
- 1000 A @ 440 V (Power Circuit)
- 250 A (DC Control Circuit)
- - Includes protective cover: Yes
- - Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free
- - Impulse withstand voltage: 8 kV
- - Max operating watts: 11 kW (at 400 V AC, 50 Hz, AC-4)
- - Standards: EN 60947-5-1, UL 508, IEC 60947-5-1, EN 60947-4-1
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.11
