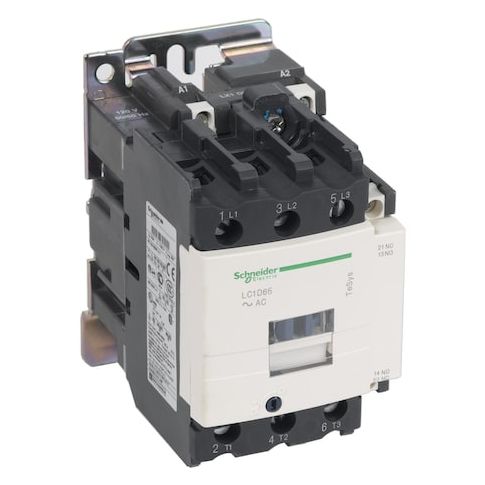

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65B7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V AC coil and 1NC/1NO auxiliary contact (1NC/1NO). It is rated for use in motor control and resistive load switching applications within specified parameters, and uses screw clamp terminals for control and power circuits. It belongs to the LC1D series within the TeSys Deca range and comes with a protective cover (note: does not imply safety guarantee).

  Key features

• - Coil voltage: 24 V AC
• - Poles: 3P
• - Auxiliary contacts: 1NC/1NO
• - Reversing capability: Non-Reversing
• - Terminal type: Screw Clamp
• - Rated voltage: 690 V AC
• - Conforms to utilization categories as defined by standards
• - Mounting: Rail
• Mounts On: Plate, Rail
• - Protective cover: Included
• - Series / Range: LC1D
• TeSys Deca
• - Operating times: 12–26 ms (Closing), 4–19 ms (Opening)
• - Ingress protection: IP2X
