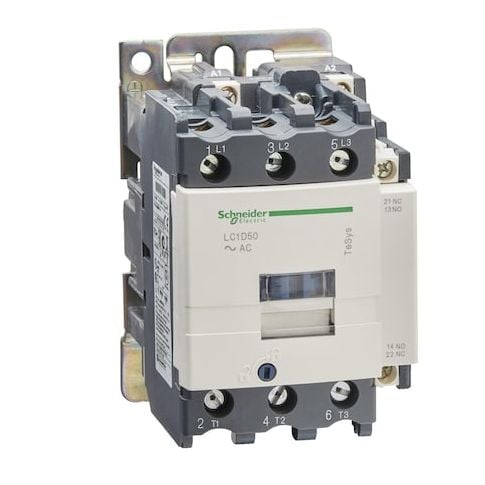

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, nonreversing, Screw Clamp MPN:LC1D50U7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, nonreversing electrically operated switch with 1NC/1NO auxiliary contacts and screw clamp terminals. It uses a 240 V AC coil to control power circuits and is intended for use with motor control and resistive loads within its specified ratings. The unit is part of the TeSys LC1D family within the TeSys Deca range, rated for operation within the specified voltage range of up to 690 V AC in the power circuit, and it includes a protective cover

• net weight is approximately 1.4 kg.

  - Poles: 3 (3P)

• - Auxiliary contacts: 1NC/1NO
• mechanically linked 1 NO + 1 NC IEC 60947-5-1
• mirror contact 1 NC IEC 60947-4-1
• - Coil voltage: 240 V AC
• coil technology: without built-in bidirectional peak limiting diode suppressor
• - Connections: screw clamp terminals (control and power circuits)
• - IP rating: IP2X
• - Range and series: Range TeSys
• Series LC1D
• Range of Product TeSys Deca
• - Rated voltage and insulation: rated for operation at voltages up to 690 V AC within applicable standards
• - Making capacity and current: has a rated making capacity of up to 900 A at voltages up to 440 V, as per specifications
• - Quick specs: Protective cover included
• net weight is approximately 1.4 kg
• dimensions approximately Width 75 mm, Height 127 mm, Depth 119 mm
• - Standards and category: Overvoltage CAT III
• Series IEC 60947/UL/CSA family
• Protection features include 8 kV impulse withstand (Rated Impulse Withstand Voltage) and 4–5 W watts loss (per stated conditions)
