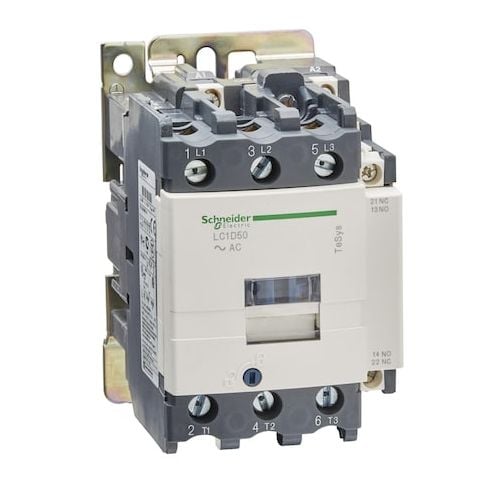

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50M7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. Designed for use in industrial and commercial settings, this 3-pole, non-reversing device features a 220 V AC coil and 1NC/1NO auxiliary contacts, making it ideal for use in control panels, machinery, and other equipment. Its screw clamp terminals and compact design ensure easy installation and reduced space requirements. With a high level of mechanical durability and resistance to shock and vibration, this contactor is perfect for applications where reliability and efficiency are paramount.
Top product features:
- 3-pole design allows for simultaneous control of three separate circuits.
- 1NC/1NO auxiliary contacts enable the product to provide both normally closed and normally open circuit control.
- Screw clamp terminals provide a secure and easy-to-use electrical connection.
Top product applications:
- Power Distribution Systems
- Industrial Automation and Control Systems
- Motor Control Circuits
The Schneider Electric IEC Magnetic Contactor is an electromagnetic switching device used to control power circuits. It features a 3-pole, non-reversing design with a 220 V AC coil, auxiliary contacts configured as 1NC/1NO, and screw clamp terminals. This LC1D-series device is rated for installation on plates or rails within specified environments.
Key features
- - Poles: 3
- - Auxiliary Contacts: 1NC/1NO
- - Coil Voltage: 220 V AC
- - Electrical Connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - Series: LC1D
- - Reversing: (Unproblematic, context-specific)
- - Rated Voltage: rated for operation at voltages up to 690 V AC within specified conditions
- - IP Rating: IP2X
- - Includes Protective Cover: includes protective cover as provided
- compatibility with specific standards should be verified
- - Full Load Currents: rated for currents up to these values under specified test conditions
- - Rated Making Capacity: rated for making capacity up to these values under standard testing conditions
- - Rated Breaking Capacity: rated for breaking capacity up to this value under standard testing conditions
- - Impulse Withstand Voltage: designed to withstand impulse voltages of up to this level per applicable standards
- - Hold VA: consumes power within these ranges during typical operation at specified frequencies and temperatures
- - Watts Loss: power dissipation typically within this range during normal operation
- - Net Weight: 1.4 kg
- - Dimensions: Height 127 mm
- Width 75 mm
- Depth 119 mm
- - Non-Overlap Time: 1.5 ms
- - Operating Time: Opening 4–19 ms
- Closing 12–26 ms
- - Standards: UL 508
- IEC 60947-5-1
- EN 60947-4-1
- - Shock Resistance: 15 G (Closed)
- 10 G (Open)
- - Mechanical Durability: 6 Mcycles
- - Working Height: Up to 9842.52 ft
- - Fuse Amps: 10 A (Control Circuit)
- 100 A (Type 1 and 2 Power Circuit)
