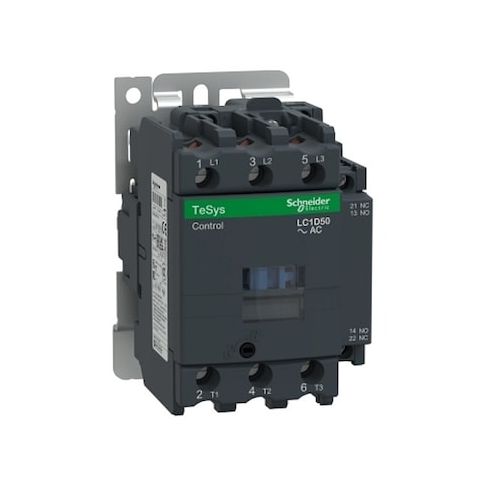

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various industrial applications. Suitable for use in control panels, machinery, and equipment, this 3-pole, non-reversing contactor ensures safe and reliable switching of power circuits. Its compact design and DIN rail mounting make it easy to integrate into existing systems. The contactor's high inrush current handling and fast operating speed make it ideal for applications with high motor loads, while its durable construction and long lifespan ensure minimal maintenance and downtime. Perfect for use in factories, plants, and other industrial settings.
Top product features:
- Coil voltage rated for operation at specified voltage levels
- 3-pole, non-reversing, coil-operated switch for controlling power circuits
- Screw clamp terminals suitable for DIN rail mounting
Top product applications:
- Industrial Automation
- The IEC Magnetic Contactor is suitable for use in industrial automation systems, particularly in applications that require precise control over power circuits, such as conveyor belt systems, robotic arms, and material handling equipment.
- Motor Control
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switch rated for controlling power circuits within IEC standards. Equipped with a 120 V AC coil and auxiliary contacts as specified, including a total of 3 auxiliary contacts (1 NC + 1 NO + 1 NC mechanically linked
- mirror contact 1 NC and mechanically linked 1 NO + 1 NC). The device utilizes screw clamp terminals
- suitable for DIN rail mounting
- conforms to the specified IP rating. It does not include integrated surge suppression components. The device complies with relevant standards including IEC 60947-4-1/5-1 standards classification.
Key features
- - Coil voltage: rated for operation at specified voltage levels
- - Phase/Poles/Main contacts: 3 poles
- 3 NO main contacts
- - Auxiliary contacts: 3 total (1 NC + 1 NO + 1 NC mechanically linked
- 1NC/1NO form)
- - Reversing capability: Non-Reversing
- - Voltage and insulation: Conforms to standard electrical ratings
- Rated insulation voltage 600/690 V
- Rated voltage for power circuit 690 V AC
- IP20
- - Protection and enclosure: Includes protective covers but does not specify additional protection features
- - Connection: Control Power and Power circuits use Screw Clamp terminals
- - Fuse protection: Rated fuse capacities according to applicable standards
- - Load and making capacity: Based on manufacturer specifications within typical operational ranges
- - Electrical/mechanical ratings: Conforming to standard performance parameters (Inrush VA 140–160
- Hold VA 13–15
- Mechanical durability 6 Mcycles
- Operating speed 3600 cyc/h
- Opening/closing times 12–26 ms (closing), 4–19 ms (opening))
- - Ratings for motors: Intended for use within specified motor horsepower ratings under defined conditions
- - Physical dimensions: Height 122 mm
- Depth 119 mm
- Width 55 mm
- Net weight 1.4 kg
- - Certifications: UL
- CSA
- CCC
- and others
- - Other electrical specs: Impedance 1.5 mΩ
- Impulse withstand voltage 6 kV
- Thermal amperage 10 A (control) and 80 A (power)
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.25
- Package Height: 3.50
- Package Weight: 3.10
