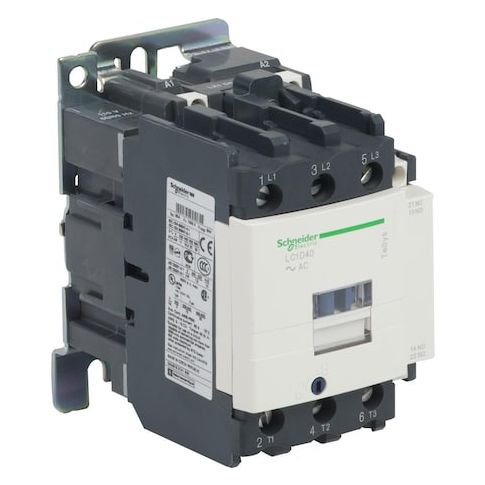

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D40B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for switching motor and resistive loads in industrial applications. Its 3-pole, non-reversing design ensures smooth operation and eliminates the risk of motor reversal. The contactor's 24V AC control coil and 1NC/1NO auxiliary contacts provide precise control and monitoring capabilities. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing, this contactor supports plate and rail mounting and includes a protective cover for added safety. Its high-rated currents and making capacity make it an ideal choice for heavy-duty applications.
Top product features:
- The SCHNEIDER ELECTRIC IEC Magnetic Contactor has a 24 V AC control coil.
- It features screw clamp terminals for switching motor and resistive loads.
- It has a maximum rated voltage of 690 V AC.
Top product applications:
- Industrial control systems for manufacturing plants
- Motor control circuits for conveyor belts and pumps
- Power distribution systems for commercial buildings and data centers
The SCHNEIDER ELECTRIC IEC Magnetic Contactor, LC1D series, is a 3-pole, non-reversing IEC magnetic contactor with a 24 V AC control coil and 1NC/1NO auxiliary contacts. It features screw clamp terminals suitable for switching motor and resistive loads within specified ratings. It includes a protective cover and supports plate or rail mounting. The device has a maximum rated voltage of 690 V AC and an IP2X rating.
Key features
- - Coil voltage: 24 V AC (50/60 Hz)
- control circuit
- - Poles/contacts: 3 poles
- main contacts 3 NO
- auxiliary 1 NC/1 NO (mechanically linked)
- - Terminals: Screw Clamp
- - Mounting: Plate and Rail
- - Protective cover: Included
- - IP rating: IP2X
- - Series: LC1D
- Reversing capability: Non-Reversing
- - Fuse coordination: 10 A (Control Circuit)
- 80 A (Power Circuit, Type 1/2)
- - Rated currents: Full Load Current—Resistive 60 A
- Inductive 40 A
- - Rated making capacity: 800 A @ 440 V (Power Circuit)
- 140 A (AC Control Circuit)
- - Rated voltage (power circuit): up to 690 V AC
- - Weight: 1.4 kg
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.10
