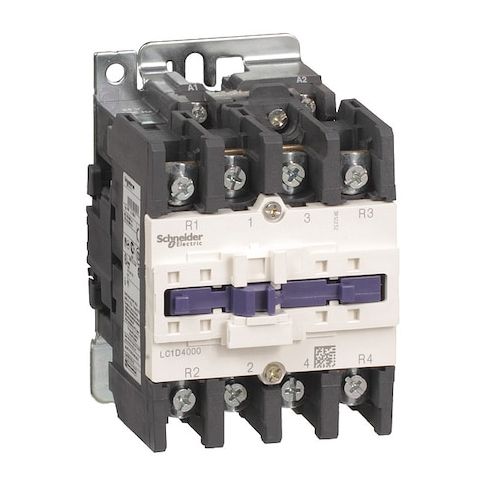

IEC Magnetic Contactor, 2NC/2NO, 110V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D40008F7
Free Shipping
In Stock
The IEC Magnetic Contactor from Schneider is a reliable and efficient device for switching resistive power circuits in industrial applications. With its 4-pole, non-reversing design and 110V AC coil, it provides precise control and versatility. The 2NO/2NC auxiliary contacts enable flexible configuration, while the screw clamp terminations simplify connections. Suitable for use in a wide range of applications, including HVAC, lighting, and motor control, this contactor offers high mechanical and electrical endurance, making it an ideal choice for demanding industrial environments. Its compact design and robust construction ensure reliable performance in temperatures from -40°F to 140°F.
Top product features:
- The IEC Magnetic Contactor has 2 normally open and 2 normally closed auxiliary contacts.
- It is configured to switch resistive power circuits within specified parameters.
- It has a non-reversing design.
Top product applications:
- Motor Control Circuits
- Industrial Control Panels
- HVAC Control Systems
The IEC Magnetic Contactor (TeSys Deca) is a four-pole, non-reversing device rated for switching resistive power circuits within specified parameters. It uses a 110 V AC coil and is configured with 2 normally open and 2 normally closed auxiliary contacts (2NO/2NC). The unit is compatible with screw clamp terminations as specified, does not include a built-in surge suppressor, and is not supplied with a protective cover. It is rated for operation at voltages up to 690 V AC and 300 V DC within specified conditions, and rated for operation at frequencies of 50/60 Hz within specified ranges. The enclosure has an IP20 ingress protection rating as specified, and its series designation is TeSys Deca.
Key features
- - Poles: 4
- - Coil voltage: 110 V AC
- - Auxiliary contacts: 2NO/2NC
- - Reversing: Non-Reversing
- - Rated voltage: 690 V AC, 300 V DC
- - Electrical connections: Screw Clamp Terminals
- - Enclosure: IP20 ingress protection rating as specified
- - Surge suppression: Does not include a built-in surge suppressor
- compatibility should be verified separately if needed
- - Series: TeSys Deca
- - Frequency: 50/60 Hz
- - Full load amps: 40 A (continuous operation under specified conditions)
- - Rated making/breaking: 800 A @ 440 V, subject to testing standards
- - Inrush/hold VA: Inrush 140–160 VA
- Hold 13–15 VA
- - Mechanical endurance: 6 Mcycles
- Electrical endurance: 1.4 Mcycles
- - Dimensions: Width 3.35 in, Height 5 in, Depth 4.92 in
- - Net weight: 1.44 kg
- - Mounting: DIN Rail, Plate
- - Environmental: Impulse withstand 6 kV
- Impedance 1.5 mΩ
- Protection: IP20
- Minimum/Maximum operating temperatures: -40°F to 140°F
- - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others
- - Fire rating: UL 94 V1
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 4.50
- Package Weight: 3.20
