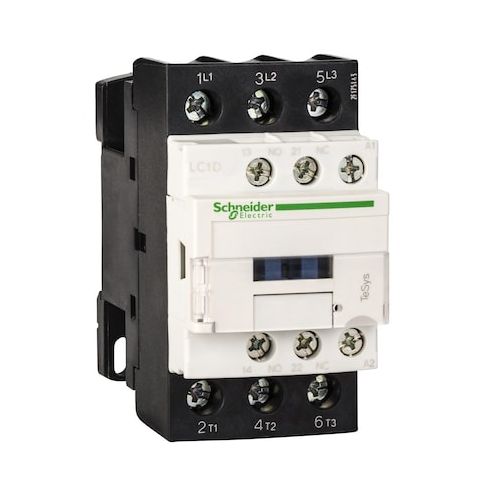

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits. Its 3-pole, non-reversing design makes it suitable for applications requiring precise control, such as in industrial machinery and automation systems. With its 120V AC coil and screw clamp terminals, it provides a secure connection for a wide range of loads. The contactor's compact size and lightweight design make it easy to integrate into various systems. Its compliance with international standards, including CSA and UL, ensures safe and reliable operation. Ideal for use in factories, warehouses, and other industrial settings.
Top product features:
- 3-pole non-reversing electrically operated switch
- 1NC/1NO auxiliary contacts provide separate control and indication of the main contact position
- Screw clamp terminals allow for easy and secure electrical connections
Top product applications:
- Industrial Automation
- Use the Schneider Electric IEC Magnetic Contactor in industrial automation systems to control and manage electrical loads, ensuring efficient and safe operation of machinery and equipment.
- Control Panel Assembly
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing electrically operated switch (IEC Magnetic Contactor) with 1NC/1NO auxiliary contacts and a 120 V AC coil. It uses screw clamp terminals and is rated for operation within specified load types. It conforms to series specifications
- mounting options are as specified.
- Poles: 3
- - Auxiliary contacts: 2 total (1NC/1NO)
- - Coil voltage: 120 V AC
- - Reversing capability: non-reversing configuration
- - Electrical connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - Dimensions: Depth 92 mm
- Height 85 mm
- Width 45 mm
- - Net weight: 0.38 kg
- - IP rating: IP20
- - Full load current (resistive): rated for a maximum continuous current of 50 A under specified conditions
- - Rated voltage: 690 V AC, 300 V DC
- - Series: LC1D
- - Standards: CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- UL 508
- - Fire rating: complies with fire safety standards as per UL 94 V1 classification
- - Non-overlap time: 1.5 ms
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.81
