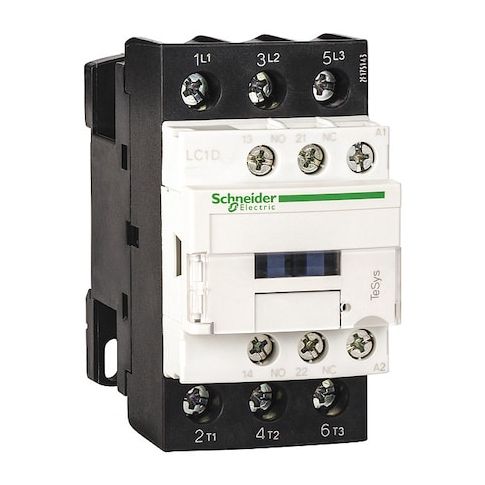

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32P7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for switching power circuits in various applications. Its 3-pole, non-reversing design makes it suitable for motor control and resistive loads, while its 230V AC coil and screw clamp terminals ensure secure and easy connections. With a protective cover and IP20 rating, this contactor provides protection against environmental factors. Its compact dimensions and lightweight design make it ideal for use in industrial settings, including plate or rail mounting. Suitable for applications such as HVAC, pumps, and conveyor systems, this contactor offers reliable and efficient switching solutions.
Top product features:
- The product has a 3-pole, non-reversing design for motor control and resistive loads.
- It features 1NC/1NO auxiliary contacts for added functionality.
- The product supports plate or rail mounting for flexible installation options.
Top product applications:
- Motor Control
- Resistive Load Control
- Industrial Automation
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device rated for switching power circuits within specified parameters. The product includes a 230 V AC coil, auxiliary contacts, and screw clamp terminals
- a protective cover is included. Supports plate or rail mounting
- rated for motor control and resistive loads up to specified electrical values.
Key features
- - Poles: 3
- - Coil voltage: 230 V AC
- - Auxiliary contacts: 1NC/1NO (2 total)
- - Reversing capability: Non-Reversing
- - Series: LC1D
- - Electrical connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - IP rating: IP20
- - Protective cover: Included
- - Dimensions (HxWxD): 85 mm x 45 mm x 92 mm
- - Net weight: 0.375 kg
- - Rated voltage: 690 V AC / 300 V DC
- - Full load current (resistive): 50 A
- - Full load current (inductive): 32 A
- - Fire rating: UL 94 V1
- - Environment attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- - Additional electrical ratings (highlights): 30 hp at 575 V 3-phase
- 10 hp at 240 V 3-phase
- 5 hp at 240 V single-phase
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.93
