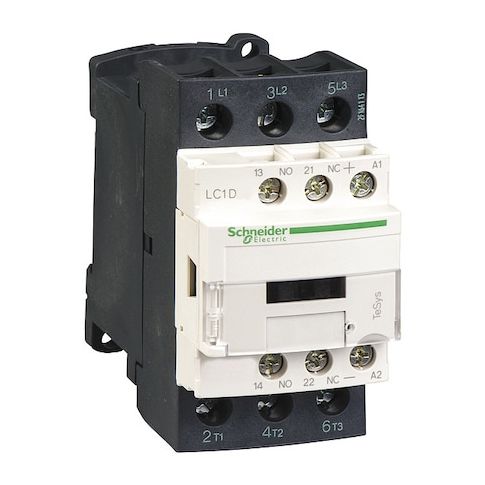

IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32JD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and power distribution. Rated for operation at voltages up to 690 V AC and 300 V DC, this 3-pole, non-reversing contactor is ideal for use in harsh environments with its IP20 rating. With a compact design and screw clamp terminals, it provides easy installation and maintenance. Suitable for use with 12 V DC coils, this contactor offers a high level of reliability and performance, making it an excellent choice for applications where safety and efficiency are paramount.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch.
- It features a 1NC/1NO auxiliary contact configuration.
- It has screw clamp terminals for electrical connection.
Top product applications:
- Industrial Control Systems
- Automotive Electronics
- Power Generation and Distribution
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch (IEC Magnetic Contactor) rated for operation within specified electrical parameters. It is rated for use with coils of 12 V DC voltage and features a 1NC/1NO auxiliary contact configuration. The unit is part of the LC1D series and equipped with screw clamp terminals and a protective cover. Dimensions (Depth x Width x Height): 101 mm x 45 mm x 85 mm
- Net weight: approximately 0.535 kg. Rated for operation at voltages up to 690 V AC and 300 V DC, and it carries an IP20 rating.
- Coil Voltage: 12 V DC
- - Auxiliary Contact Form: 1NC/1NO
- - Number of Poles: 3
- - Reversing Capability: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Protective Cover: Yes
- - IP Rating: IP20
- - Series: LC1D
- - Rated Voltage: Up to 690 V AC and 300 V DC
- - Dimensions (Depth x Width x Height): 101 mm x 45 mm x 85 mm
- Net weight: approximately 0.535 kg
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 61 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.27
