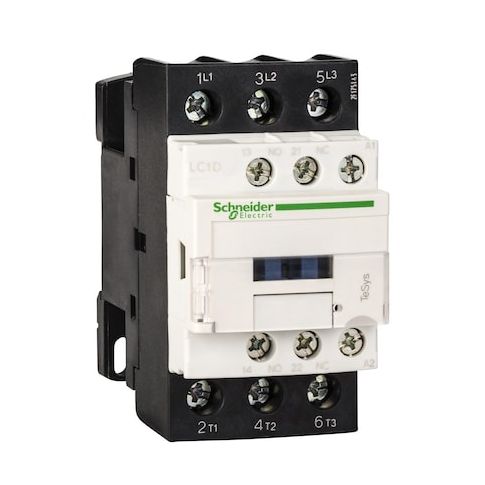

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Box Lug MPN:LC1D326G7
Free Shipping
In Stock
The Schneider LC1D IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load applications. Its 3-pole, non-reversing design ensures safe and controlled operation, while the 120V AC coil and 1NC/1NO auxiliary contacts provide flexible configuration options. Suitable for use in a variety of settings, including industrial and commercial environments, this contactor is designed to withstand harsh conditions and provide long-lasting performance. Its compact design and box lug wiring connections make it easy to integrate into existing systems, making it an ideal choice for applications where reliability and efficiency are paramount.
Top product features:
- 3-pole design allows for multiple circuit control
- Non-reversing design prevents accidental motor or load reversal
- 120 V AC coil enables operation within specified voltage ranges
Top product applications:
- Motor Control Systems
- Industrial Automation and Control Systems
- Resistive-Load Applications
The item is an IEC Magnetic Contactor (LC1D series), a 3-pole, non-reversing, electrically operated switch rated for use in motor control and resistive-load applications within specified parameters. It includes a 120 V AC coil and auxiliary contacts configured as 1NC/1NO
- compatible with box lug wiring connections.
- Series: LC1D
- - Poles: 3
- Auxiliary contacts: 1NC/1NO
- - Coil voltage: 120 V AC
- - Reversing capability: non-reversing design
- - Electrical connection: Box Lug
- - Mounting: Plate, Rail
- - Rated voltage: rated for operation within the specified voltage ranges (690 V AC / 300 V DC)
- - IP rating: IP20
- - Protective cover: Equipped with a protective cover (if applicable)
- - Full load current (resistive): rated for full load currents up to 50 A under specified conditions
- - Rated making capacity: up to 140 A (AC signalling), 250 A (DC signalling), 550 A @ 440 V (Power circuit) under standard test conditions
- - HP ratings: horsepower ratings are based on standardized testing
- actual performance may vary depending on application conditions
- - Operating times: typical operating times within the specified range
- actual times may vary based on usage conditions
- - Non-overlap time: designed to meet the specified non-overlap time under standard testing conditions
- - Shock resistance: tested for shock resistance according to relevant standards
- actual resistance may vary during use
- - Vibration resistance: tested vibration resistance levels per standards
- real-world performance may differ accordingly
- - Signalling circuit: Frequency 25–400 Hz
- Switching current 5 mA
- Switching voltage 17 V
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, and others
- - Fire rating: UL 94 V1
- - Series description: 3P, non-reversing motor control/loads
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.93
