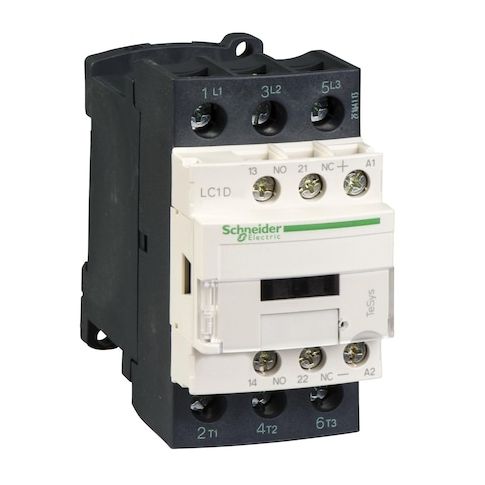

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Box Lug MPN:LC1D326BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. With its 3-pole, non-reversing configuration and 24 V DC coil, this contactor provides precise control and switching capabilities. Its 1NC/1NO auxiliary contacts and box lug terminals ensure easy connection and installation. Suitable for use in a variety of industries, including manufacturing, HVAC, and renewable energy, this contactor offers improved safety, reduced downtime, and increased productivity. Its compact design and durable construction make it an ideal choice for demanding applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 24 V DC coil, configured with 1NC/1NO auxiliary contacts and box lug terminals. It is rated for use in motor control and resistive load switching applications within IEC standards.
- It has a rated making capacity of 140 A for AC signalling, 250 A for DC signalling, and 550 A at 440 V for power circuit applications.
- It is designed with a non-reversing capability, allowing for one-way control of motor or resistive loads.
Top product applications:
- Motor Control
- Resistive Load
- Non-Reversing Applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 24 V DC coil, configured with 1NC/1NO auxiliary contacts and box lug terminals. It is rated for use in motor control and resistive load switching applications within IEC standards.
- Poles: 3
- - Coil Voltage: 24 V DC
- - Auxiliary Contacts: 1NC/1NO
- - Reversing Capability: Non-Reversing
- - Electrical Connection: Box Lug
- - Mounting: Plate, Rail
- - Series: LC1D
- - IP Rating: IP20
- - Net Weight: 0.535 kg
- - Dimensions: Depth 101 mm, Width 45 mm, Height 85 mm
- - Rated Voltage: 690 V AC, 300 V DC
- - Full Load Current (Resistive): specified full load current ratings under standard test conditions
- - Full Load Current (Inductive): specified full load current ratings under standard test conditions
- - Includes Protective Cover: as provided by the manufacturer
- - Applications: Motor Control, Resistive Load
- - Standards: CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- IEC 60335-1
- DNV
- CCC
- GL
- UL
- BV
- GOST
- LROS
- CSA
- RINA
- UKCA
- THIEC 60068-2-30
- - Environmental Attributes: Mercury Free
- PVC Free
- Toxic Heavy Metal Free
- Pollution Degree 3
- - Fire Rating: UL 94 V1
- - Rated Making Capacity: 140 A (AC Signalling)
- 250 A (DC Signalling)
- 550 A @ 440 V (Power Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.33
