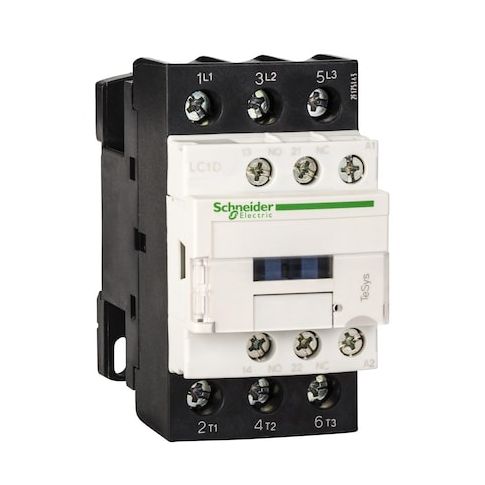

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:LC1D326B7

• The Schneider Electric LC1D IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation with motor control and resistive loads within specified parameters. It uses a 24 V AC coil and includes 3 normally open main contacts

• auxiliary contacts are mechanically linked as specified. The device is equipped with screw terminals for wiring
• conforms to applicable standards for safety and performance specifications.

  Key features

• - Coil and suppressor: 24 V AC coil
• does not include an integrated suppressor module.
• - Contacts: includes 3 normally open main contacts
• auxiliary contacts are mechanically linked as specified.
• - Terminals: Screw terminal type
• control circuit uses lugs-ring terminals with 8 mm diameter
• power circuit uses lugs-ring terminals with 10 mm diameter.
• - Electrical ratings: electrical ratings are based on tested conditions within specified voltage ranges
• actual performance may vary depending on application conditions.
• - Protection and enclosure: complies with IP20 ingress protection rating when installed according to instructions.
• - Physical/data: Width 45 mm, height 85 mm, depth 92 mm
• net weight 0.375 kg
• mounting on plate or rail
• range TeSys Deca
• series LC1D.
• - Standards and environment: manufactured in accordance with these standards
• environmental compliance statements reflect material composition but do not imply specific safety guarantees in all environments.
• - Additional electrical/durability specs: technical specifications provided are based on standardized testing conditions. Actual device lifespan or performance may vary depending on usage environment.
