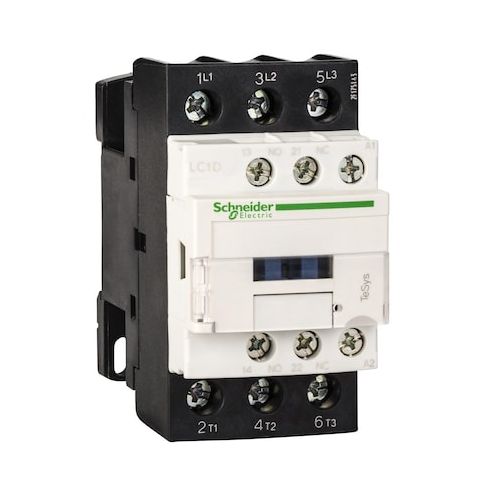

IEC Magnetic Contactor, 1NC/1NO, 600V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25X7

• The item is an IEC Magnetic Contactor used to switch power circuits in motor control and resistive-load applications. It is a 3-pole, non-reversing device with a 1NC/1NO auxiliary contact configuration, driven by a 600 V AC coil and wired through screw clamp terminals for control and power circuits. The device belongs to the LC1D series (TeSys Deca). The device has an IP20 front-face rating with a protective cover.

  - Poles/contacts: 3P with 3 NO main contacts

• auxiliary contacts: 1 NO + 1 NC (mechanically linked)
• - Coil voltage: 600 V AC
• - Control circuit type/voltage: AC 50/60 Hz
• Control circuit voltage 600 V AC
• - Connections: Screw Clamp terminals (control and power circuits)
• - Mounting: Plate, Rail
• Mounts On: Plate, Rail
• - IP Rating: IP20 front-face rating
• - Protective cover: Included
• - Fuse ratings: 10 A gG signalling
• 63 A gG Type 1 Power Circuit
• 40 A gG Type 2 Power Circuit
• - Rated making capacity: 140 A (AC signalling)
• 250 A (DC signalling)
• 450 A @ 440 V (Power circuit)
• - Short-time withstand current: 240 A (Power Circuit, 40°C, 10 s)
• 380 A (Power Circuit, 40°C, 1 s)
• 50 A (Power Circuit, 40°C, 10 min)
• 120 A (Power Circuit, 40°C, 1 min)
• 100 A (Signalling, 1 s)
• 120 A (Signalling, 500 ms)
• 140 A (Signalling, 100 ms)
• - Rated insulation voltage: 600/690 V
• - Rated operational voltage: Power circuit up to 690 V AC (25–400 Hz)
• up to 300 V DC
• - Maximum height/width/depth: 85 mm × 45 mm × 92 mm
• - Weight: 0.37 kg
• - Series: LC1D
• - Range: TeSys Deca
• - Reversing capability: Non-Reversing
