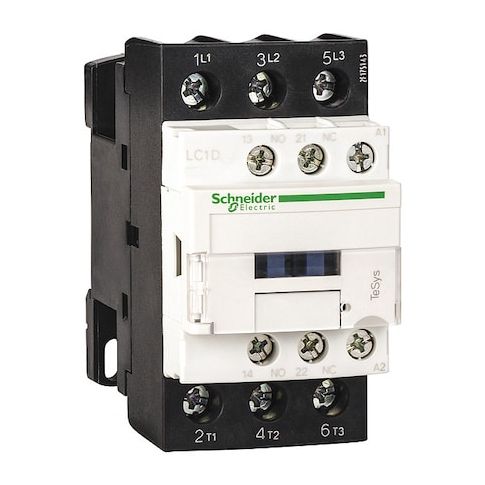

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D25P7

• The IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch rated for use in motor control and resistive load applications.

  It uses a 230 V AC coil with screw clamp terminals

• includes 1NO/1NC auxiliary contacts (2 total)
• features a protective cover
• conforms to IEC standards under the TeSys Deca family.

  The device can be mounted on DIN rails or plates

• it is supplied without an enclosed housing (IP20 rating).

  - Coil voltage: 230 V AC (50/60 Hz)

• Phase: Three
• - Poles and main contacts: 3 poles
• rated for specified switching capacity within operational parameters
• - Auxiliary contacts: 2 contact points configured as normally open/normally closed as specified by manufacturer ratings
• - Connection method: Screw clamp terminals rated for appropriate wire sizes within installation guidelines
• - Mounting options: DIN rail or plate mounting according to standard practices
• - Series/frame designation: Based on manufacturer specifications
• - Enclosure/IP: Enclosure type varies depending on application requirements
• IP20 rating indicates limited ingress protection when used with provided covers if applicable
• - Rated voltages: Based on product specifications but do not imply suitability beyond those ratings or guarantee performance at all conditions
• - Currents and making capacity: Current ratings specify maximum electrical loads per manufacturer data but do not guarantee operation under all circumstances or over time
• - Short-time withstand and surge: Short-time withstand capabilities are based on testing standards but do not ensure failure-free operation during actual use conditions outside tested parameters
• - Mechanical/electrical durability: Durability figures indicate typical cycle counts under test conditions but do not constitute guarantees of lifespan in specific environments or usage patterns
• - Operating times: 12–22 ms (Closing)
• 4–19 ms (Opening)
• - Hold/inrush power: Hold VA 7.5 VA (60 Hz, 20°C)
• 7 VA (50 Hz, 20°C)
• Inrush VA 70 VA
• - Protection and safety features: Embedded surge suppressor: No
• - Physical dimensions and weight: Width 1.77 in
• Height 3.35 in
• Depth 3.62 in
• Net weight 0.37 kg
• - Environmental and standards: Standards include EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others
• Shock: 8 G (Open), 15 G (Closed)
• - Reversing: Non-Reversing
• - Operating environment: Max ambient temperature 60°C (140°F)
