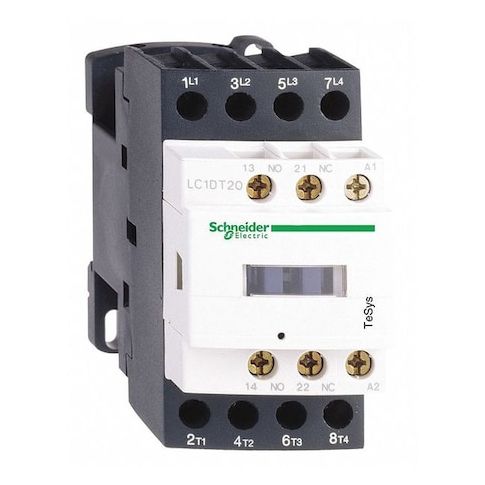

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT20U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device ideal for various industrial applications. Its 4-pole configuration and 240V AC coil rating make it suitable for use in power distribution systems, motor control, and other high-voltage applications. The non-reversing design ensures safe and consistent operation, while the 1NC/1NO auxiliary contacts provide additional control functionality. With its compact design and IP20 protection, this contactor is perfect for use in a variety of settings, including manufacturing facilities, data centers, and other high-demand environments where reliability and efficiency are paramount.
Top product features:
- Non-reversing operation to prevent accidental switching
- 4-pole switching device for increased power handling and flexibility
- 3600 cycles per hour maximum operating rate for reliable and efficient switching
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Units
The Schneider Electric IEC Magnetic Contactor is a non-reversing, 4-pole switching device rated for operation within the specified voltage ranges. It features a 240 V AC coil and an auxiliary contact configuration of 1NC/1NO. The unit uses screw clamp terminals and includes a protective cover, with IP20 protection on the front face. It belongs to the TeSys Deca (LC1D) family and is rated for use within the specified voltage range of up to 690 V AC.
Key features
- - Coil voltage: 240 V AC
- - Poles and contacts: 4 poles
- 1NC/1NO auxiliary contacts
- non-reversing
- - Terminals: Screw Clamp
- - Protective cover: Included
- - Mounting: Plate, Rail
- - Dimensions and weight: 45 mm wide
- 85 mm high
- 92 mm depth
- 0.365 kg net
- - IP rating: IP20 front face
- - Power circuit rating: rated for use within the specified voltage range of up to 690 V AC
- AC-1 utilization
- 20 A rated operational current (power circuit) up to 440 V AC
- - Making capacity: 250 A at 440 V (power circuit)
- - Fusing recommendations: 10 A (Signalling Circuit)
- 25 A (Type 1 Power Circuit)
- 20 A (Type 2 Power Circuit)
- - Series/Range: LC1D
- Range TeSys Deca
- - Withstand/impedance: 6 kV impulse withstand
- 2.5 mOhm impedance
- - Additional: 3600 cycles per hour maximum operating rate
- 1.5 ms non-overlap time between NC and NO actions
- - Enclosure protection: With protective cover
- IP20 front face IEC 60529
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.85
