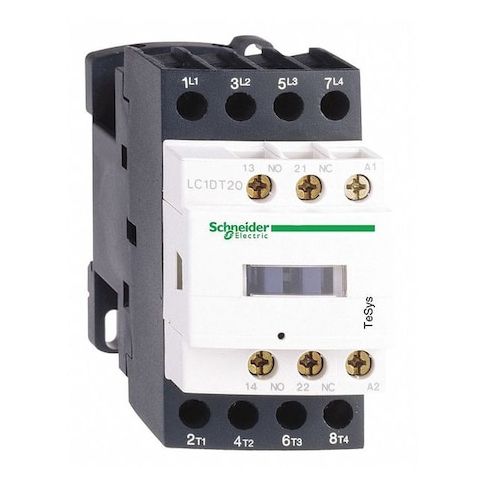

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT20G7
Free Shipping
In Stock
The Schneider LC1D IEC Magnetic Contactor is a reliable and efficient switching device for controlling power circuits in electrical control systems. Designed for use with resistive loads, this 4-pole, non-reversing contactor features 1NC/1NO auxiliary contacts and a 120 V AC coil. With its screw clamp terminals and protective cover, it provides a secure and easy-to-install solution. Suitable for a range of applications, including industrial automation, HVAC, and lighting control, the LC1D contactor offers improved safety and reduced downtime. Its compact design and high-quality construction make it an ideal choice for demanding electrical control systems.
Top product features:
- The IEC Magnetic Contactor features a 4-pole, non-reversing design.
- It includes 1NC/1NO auxiliary contacts for additional functionality.
- The unit has a protective cover for added safety and durability.
Top product applications:
- Resistive Load
- Control power circuits in electrical control systems
- General purpose applications
The IEC Magnetic Contactor, LC1D series, is an electrically operated switching device used to control power circuits in electrical control systems. It features a 4-pole, non-reversing design with 1NC/1NO auxiliary contacts and a 120 V AC coil rated for operation at 120 V AC within specified parameters. The unit is designed to be compatible with screw clamp terminals
- includes a protective cover
- has an IP20 ingress protection rating.
- Application: Resistive Load
- - Coil voltage: 120 V AC
- - Series: LC1D
- - Poles: 4
- non-reversing design (reversing capability not included)
- - Auxiliary contacts: 1NC/1NO (2 total)
- - Rated for operation within the specified voltage ranges
- - Terminals: Screw Clamp
- - Mounting: Plate, Rail
- - IP rating: IP20
- - Protective cover: Included
- - Dimensions: Height 85 mm
- Width 45 mm
- Depth 92 mm
- - Net weight: 0.365 kg
- - Standards: CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- and others listed
- - Fuse Amps (Power/Signalling): 25 A (Type 1 Power Circuit)
- 20 A (Type 2 Power Circuit)
- 10 A (Signalling Circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
