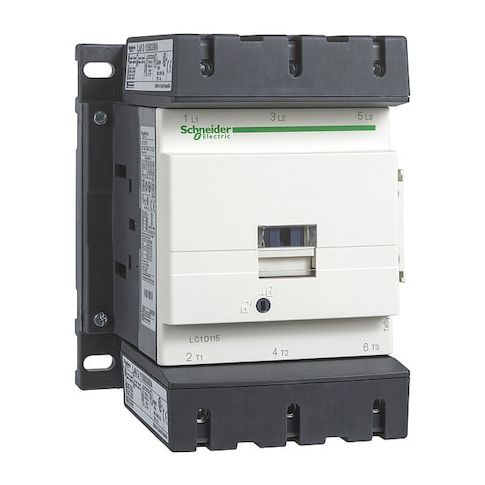

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D115M7

• The item is a Schneider Electric IEC Magnetic Contactor from the LC1D series. It is a 3-pole, non-reversing device with a 1NC/1NO auxiliary contact, operated by a 220 V AC coil, and wired via screw clamp terminals. Rated for operation within specified motor control and resistive load applications, it supports plate or rail mounting and includes a protective cover with an IP20 front face.

  - Series: LC1D

• Product Type: IEC Magnetic Contactor
• Poles: 3P
• Pole Contact Composition: 3 NO
• Auxiliary Contacts: 1NC/1NO (mechanically linked 1 NO + 1 NC)
• - Coil and control: Coil Voltage: 220 V AC
• Coil Suppression: Built-in bidirectional peak limiting diode suppressor
• Control Circuit: AC 50/60 Hz
• - Terminals and wiring: Electrical Connection: Screw Clamp Terminals
• Terminal Connection Type: Screw Clamp
• - Mounting: Mounting Supports: Rail
• Plate
• Mounts On: Plate, Rail
• - Protection and enclosure: Protective Cover: With
• IP Rating: IP20
• Pollution Degree: 3
• - Electrical ratings: Rated Making Capacity: 1260 A @ 440 V (Power Circuit)
• 140 A (AC Signalling)
• 250 A (DC Signalling)
• - Physical size: Net Weight: 2.5 kg
• Width: 120 mm
• Height: 158 mm
• Depth: 136 mm
• - Operational characteristics: Reversing Capability: Non-Reversing
• Series: LC1D
