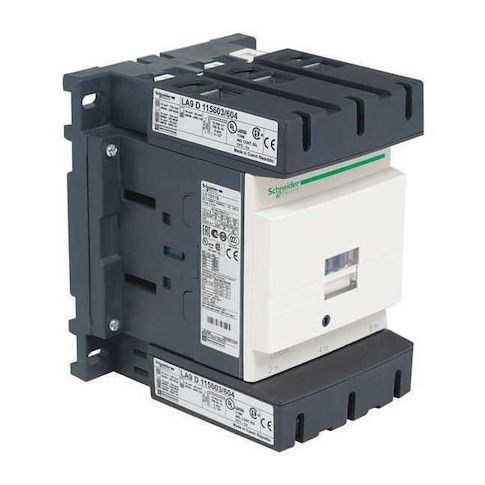

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D115GD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for IEC-standard control circuit applications. This 3-pole, non-reversing contactor is powered by a 125 V DC coil and features a 1NC/1NO auxiliary contact. Its screw clamp terminals are rated for use in a variety of applications, including power circuits and signalling circuits. The contactor's high rated making and breaking capacities make it suitable for use in industrial settings where high power and reliability are required. Ideal for use in control panels, machines, and other industrial equipment, this contactor ensures safe and efficient operation.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, non-reversing design.
- It includes a 1NC/1NO auxiliary contact for controlling other devices.
- It uses screw clamp terminals for easy and secure electrical connections.
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device powered by a 125 V DC coil. It includes a 1NC/1NO auxiliary contact and uses screw clamp terminals, rated for use in IEC-standard control circuit applications. It is part of the LC1D family in the TeSys range (TeSys Deca).
Key features
- - Coil voltage: 125 V DC
- - Poles: 3P
- - Auxiliary contacts: 1NC/1NO (mechanically linked 1 NO + 1 NC
- mirror contact 1 NC)
- - Fuse ratings: 250 A gG (Power Circuit, coordination type 1)
- 200 A gG (Power Circuit, coordination type 2)
- 10 A gG (Signalling Circuit)
- - Rated making capacity: 1260 A at 440 V (Power Circuit)
- 140 A at AC signalling voltage
- 250 A at DC signalling voltage
- - Rated breaking capacity: up to 1100 A at 440 V (Power Circuit)
- - IP rating: IP20 front face
- - Protective cover: Included
- - Mounting: Rail and Plate
- - Dimensions: Height 158 mm
- Width 120 mm
- Depth 136 mm
- - Net weight: 2.5 kg
- - Series/Range: LC1D
- TeSys
- - Reversing: Non-Reversing
- - Electrical connection: Screw Clamp terminals
- - Rated operational voltage: rated for operation within specified voltage ranges of up to approximately 1000 V AC and up to approximately 300 V DC
- - Rated insulation voltage: Power Circuit 600/1000 V (CSA/UL/IEC)
- Signalling Circuit 690 V (IEC)
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.45
