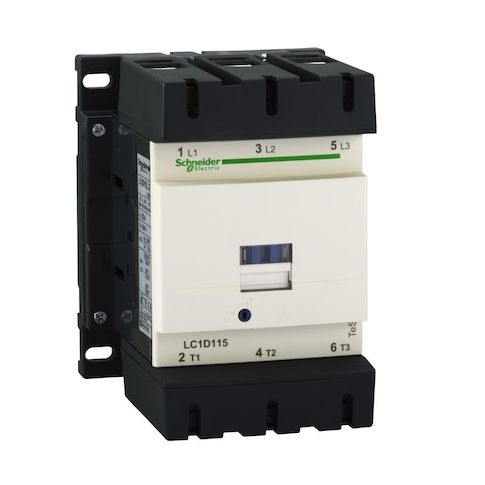

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D115G6
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive loads. Its 3-pole, non-reversing design makes it ideal for applications where consistent operation is critical. The device features screw clamp terminals for easy installation and a protective cover for added safety. Suitable for use in a variety of settings, including industrial and commercial environments, this magnetic contactor is designed to operate within specified parameters, providing a high level of reliability and performance. Its compact design and robust features make it an excellent choice for a range of applications.
Top product features:
- Has a 3-pole configuration for controlling three separate circuits
- Has a non-reversing capability to prevent motor rotation reversal
- Features screw clamp terminals for easy and secure electrical connections
Top product applications:
- Motor Control
- Resistive Load Control
- General Purpose Switching
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 120 V AC coil and auxiliary contact form 1NC/1NO. It uses screw clamp terminals and is rated for operation with motor control and resistive loads within specified parameters. The unit can be mounted on plate or rail, and it includes a protective cover. The series designation is LC1D, with a net weight of 2.5 kg and dimensions of 136 mm depth, 158 mm height, and 120 mm width.
- Poles: 3
- - Auxiliary Contacts: 1NC/1NO
- - Coil Voltage: 120 V AC
- - Electrical connection: Screw Clamp Terminals
- - Mounting: Plate, Rail
- - IP Rating: IP20
- - Series: LC1D
- - Protective Cover: Yes
- - Dimensions (L×W×H): 136 mm × 120 mm × 158 mm
- - Net Weight: 2.5 kg
- - Reversing Capability: Non-Reversing
- - Rated Voltage: rated voltage within specified ranges (see specifications)
- - Rated Making Capacity: rated making capacity as specified under test conditions
- actual performance may vary based on application
- - Rated Breaking Capacity: rated breaking capacity as specified under test conditions
- actual performance may vary based on application
- - Full Load Currents: Designed to operate within the rated full load currents listed in specifications
- - Fuses: Compatible with fuses of ratings specified
- proper fuse selection recommended per application requirements
- - Operating Time: Typical operating times based on testing conditions
- actual times may vary depending on system configuration
- - Shock Resistance: Tested to withstand shock levels up to specified values under controlled conditions
- - Vibration Resistance: Designed to withstand vibration levels up to specified values under standard testing procedures
- - Environmental Attributes: Mercury Free, PVC Free, Pollution Degree 3
- - Fire Rating: UL 94 V1
- - Impedance: 0.6 mΩ
- - Inrush VA: 300 VA
- - Hold VA: 22 VA
- - Working Height: Up to 9842.52 ft
- - Non-Overlap Time: 1.5 ms
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.35
