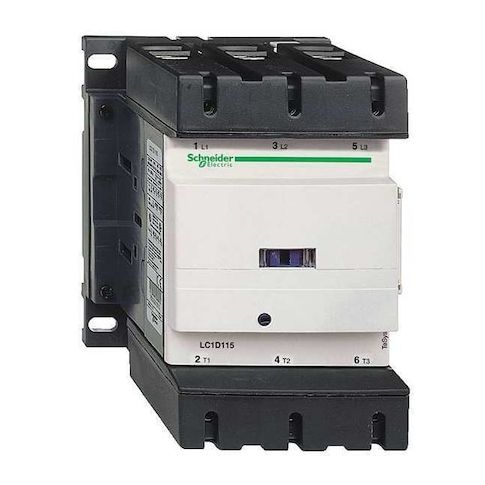

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, nonreversing, Ring-lug screw terminals MPN:LC1D1156BD
Free Shipping
In Stock
The Schneider LC1D IEC Magnetic Contactor is a reliable and efficient device for controlling and switching power in various applications. With a 24V DC coil and 3P configuration, it provides a non-reversing mechanism and 1NC/1NO auxiliary contact for added functionality. Its ring-lug screw terminals enable easy connections for control and power circuits. Suitable for use in industrial settings, the contactor is rated for operation at high speeds and can handle currents up to 200A. Its compact design and robust construction make it an ideal choice for applications in machinery, automation, and power distribution systems, ensuring safe and reliable operation.
Top product features:
- It has 3 poles and a 1NC/1NO auxiliary contact.
- It is nonreversing.
- It has ring-lug screw terminals for both control and power connections.
Top product applications:
- Industrial Automation
- Industrial control systems
- Power distribution and control
The item is an IEC Magnetic Contactor with 3 poles (3P) and a 24 V DC coil. It is nonreversing and includes a 1NC/1NO auxiliary contact. The device uses ring-lug screw terminals for both control and power connections and is rated for operation within specified load types and conditions.
- Coil Voltage: 24 V DC
- - Poles / Contact Configuration: 3P
- Pole contact composition 3 NO
- - Auxiliary Contacts: 1NC/1NO
- Type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- - Reversing Capability: Nonreversing
- - Terminals: Control circuit: Lugs-Ring Terminals
- Power circuit: Bars, Lugs-Ring Terminals
- - Series: LC1D
- - Mounting: Rail
- Plate
- - Protective Cover: With
- - IP Rating: IP20 (front face)
- - Weight: 2.5 kg
- - Dimensions: Depth 136 mm
- Width 120 mm
- Height 158 mm
- - Rated Making Capacity: Conforms to the rated making capacity specifications as per applicable standards
- - Full Load Current (Power Circuit): Rated for continuous operation at currents up to 200 A under specified conditions
- - With Integral Suppression Device: Yes
- - Standards: EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 508
- CE
- CSA
- UL
- UL CSA
- GOST
- CCC
- RINA
- BV
- GL
- LROS
- DNV
- UKCA
- CE
- - Operating Speed: Rated for operation at speeds up to 1200 cycles per hour within specified parameters
- - Series design: LC1D
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.76
