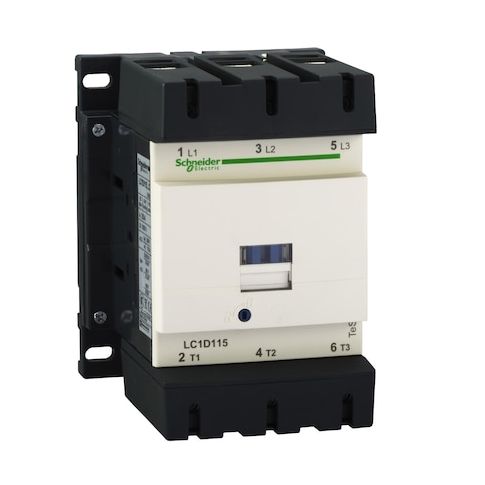

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:LC1D1156B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient electrical switch designed for a wide range of applications, including industrial and commercial settings. Its 24V AC coil and 3-pole, non-reversing design make it ideal for controlling and switching electrical loads. The device's screw terminals and protective cover ensure safe and easy installation, while its high insulation voltage and impulse withstand voltage provide long-term reliability. Suitable for use in control circuits, the contactor is perfect for applications such as HVAC systems, lighting control, and motor control. Its durability and performance make it a valuable addition to any electrical system.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a non-reversing design.
- It has a 3-pole configuration with 1NC/1NO auxiliary contact.
- It uses screw terminals for control and power circuits.
Top product applications:
- Motor Control Circuits
- Industrial Control Panels
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electrical switch rated for operation within IEC standards. With a 24 V AC coil and 1NC/1NO auxiliary contact, it is rated for switching specified load types within the specified parameters. The device uses screw terminals for control and power circuits and is equipped with a protective cover as per product specifications.
- Coil voltage: 24 V AC
- - Poles and main contacts: 3P
- 3 NO
- - Auxiliary contacts: 1 NC/1 NO
- mechanically linked 1 NO + 1 NC IEC 60947-5-1
- - Reversing capability: non-reversing design (if applicable) or specify as non-reversing model
- - Series/Range: LC1D
- TeSys
- TeSys Deca
- - Terminals: Control circuit—Lugs-Ring
- Power circuit—Bars, Lugs-Ring
- Screw terminals
- - IP rating: IP20
- - Protective cover: With
- - Fuse rating: fuse ratings are provided according to manufacturer specifications
- ensure compatibility with application requirements
- - Rated making capacity: rated making capacity based on standard testing conditions
- actual performance may vary depending on installation and operating environment
- - Full load current: full load current ratings are based on standard test conditions
- actual operational currents should be verified during system design
- - Rated insulation voltage: rated insulation voltages according to product specifications
- proper application depends on adherence to these limits
- - Rated impulse withstand voltage: impulse withstand voltage is based on standardized testing parameters
- does not imply suitability beyond specified ratings
- - Control circuit voltage: control circuit operates at nominal voltage within specified frequency range
- verify compatibility with your system supply voltage and frequency
- - Rated operational voltage: Power circuit up to 1000 V AC
- up to 300 V DC
- - Ambient temperature: -40 to 60°C
- 60-70°C derating
- - Operating time: 6-20 ms opening
- 20-50 ms closing
- - Non-overlap time: 1.5 ms
- - Net weight: 2.5 kg
- - Dimensions: Height 158 mm
- Width 120 mm
- Depth 136 mm
- - Mechanical durability: 8 Mcycles
- - Shock/vibration: 15 G (Closed)
- 6 G (Open)
- 4 G (Closed)
- 2 G (Open)
- - Impedance: 0.6 mΩ
- - Inrush/holding VA: 280-350 VA (inrush)
- 2-18 VA (hold)
- - Fire/flammability: UL 94 V1
- 850°C (IEC 60695-2-1)
- - Pollution degree: 3
- - Material/eco notes: PVC Free: Yes
