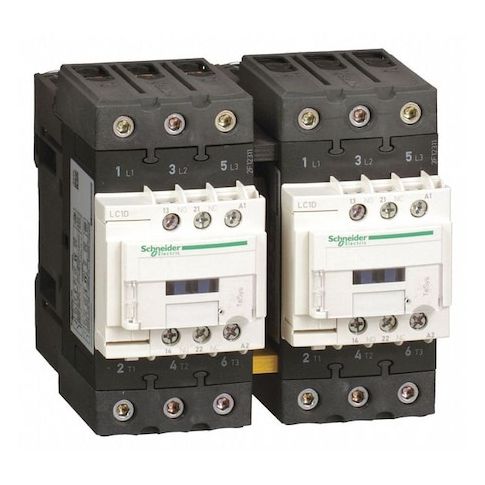

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D65AG7

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3‑pole, reversing‑action device used to switch power circuits in motor control and resistive‑load applications. The coil operates at 120 V AC

• auxiliary contacts are configured as 1NC/1NO with a total of four auxiliary contacts
• connections include screw clamp terminals for control circuits and EverLink BTR screw connectors for power circuits. The unit conforms to the LC2D series specifications, with an IP20 enclosure rating, and meets UL 94 V1 flammability standards. Dimensions are approximately W119 mm x D120 mm x H122 mm
• weight is approximately 1.89 kg. The device is rated for operation within the specified voltage ranges of 690 V AC and 300 V DC.

  - Action: Reversing

• - Poles: 3
• - Auxiliary Contacts: 4 (1NC/1NO)
• - Coil Voltage: 120 V AC
• - Application: Motor Control, Resistive Load
• - Electrical Connections: Control Circuit—Screw Clamp Terminals
• Power Circuit—EverLink BTR Screw Connectors
• - Rated Voltage: The device is rated for operation within the specified voltage ranges of 690 V AC and 300 V DC
• - IP Rating: IP20
• - Series: LC2D
• - Dimensions (W x D x H): 119 mm x 120 mm x 122 mm
• Weight: 1.89 kg
• - Flammability: UL 94 V1
• - Standards: Complies with applicable standards including CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
