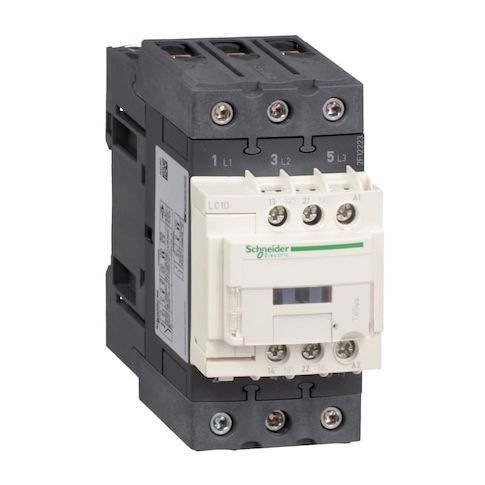

IEC Magnetic Contactor, 1NC/1NO, 12V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65AJD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. With its 12V DC coil and 3-pole non-reversing design, this device is ideal for use in industrial automation, control systems, and power distribution networks. The built-in 1NC/1NO auxiliary contact provides additional functionality, while the screw clamp terminals and EverLink BTR screw connectors ensure secure and easy connections. Suitable for use in a range of industries, including manufacturing, HVAC, and renewable energy, this contactor offers a safe and reliable way to manage electrical power.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, non-reversing design.
- It includes a 1NC/1NO auxiliary contact for additional control functionality.
- It features screw clamp terminals for the control circuit and EverLink BTR screw connectors for the power circuit.
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Machine Control Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a built-in 12 V DC coil. It includes a 1NC/1NO auxiliary contact and uses screw clamp terminals for the control circuit, with EverLink BTR screw connectors for the power circuit. The unit is part of the TeSys Deca range (LC1D) and includes a protective cover.
Key features
- - Coil Voltage: 12 V DC
- - Poles and auxiliary contacts: 3P
- 1NC/1NO (mechanically linked 1 NO + 1 NC IEC 60947-5-1)
- - Reversing capability: Non-Reversing
- - Electrical connections: Control Circuit—Screw Clamp Terminals
- Power Circuit—EverLink BTR Screw Connectors
- - Protection and enclosure: Protective cover included
- IP20 front face
- - Physical and product family: Range TeSys Deca
- Series LC1D
- Depth 120 mm, Height 122 mm, Width 55 mm
- Net weight 0.935 kg
- - Rated insulation voltage: 600/690 V
- Rated for operation within the specified voltage ranges as per product specifications
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.23
