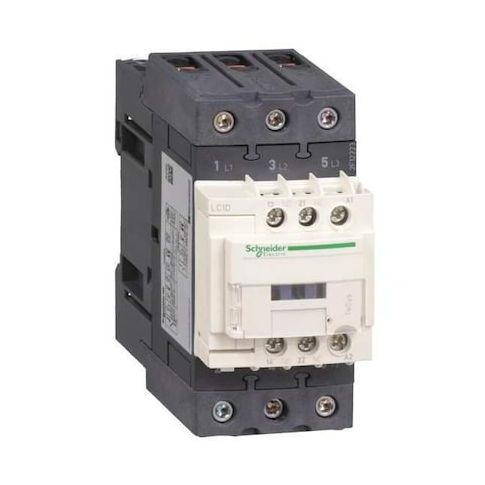

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65AF7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. This three-pole device operates at 110V AC and features screw clamp terminals for secure electrical connections. With its robust mechanical durability and high breaking capacity, it's designed for use in demanding conditions. The contactor is ideal for use in industrial settings, such as manufacturing, HVAC, and water treatment facilities, where reliable motor control is crucial. Its compact design and easy mounting make it a convenient solution for space-constrained areas, providing a reliable and efficient way to control electrical loads.
Top product features:
- Operates with a coil voltage of 110V AC
- Features screw clamp terminals for secure electrical connections
- Has an auxiliary contact form of 1NC/1NO
Top product applications:
- Motor control
- Resistive load applications
- Industrial control systems
The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-pole device designed for motor control and resistive load applications. It operates with a coil voltage of 110V AC and features screw clamp terminals for secure electrical connections. This contactor has an auxiliary contact form of 1NC/1NO and can withstand impulse voltages up to 6 kV. With its robust mechanical durability of 6 Mcycles, it is designed for use in demanding conditions.
Key Features:
- - Operates at full load currents of 65 A (inductive) and 80 A (resistive)
- - Includes Everlink power connections and protective cover
- - Rated insulation volts: 600/690V
- rated breaking capacity:1000 A @440V
- - Electrical durability ranges from 1.4 Mcycles (80A, AC-1, less than 440 V) to 1.45 Mcycles (65A, AC-3e, less than 440 V)
- - Control circuit voltage limits are designed for operation within specified temperature ranges
- - Fire rating UL94 V1
- IP Rating IP20 indicating protection against solid objects up to fingers or similar size but not protected against water.
- - Mounts on plate or rail
- net weight:0.86 kg
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.10
