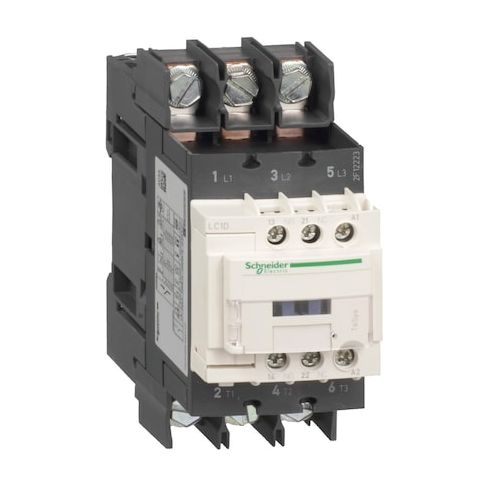

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:LC1D65A6B7
Free Shipping
In Stock
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a reliable and efficient 3-pole, non-reversing electrical switch designed for use in motor and resistive-load circuit applications. Its 24 V AC coil and auxiliary contacts (1NC/1NO) provide precise control and monitoring capabilities. With its robust construction and IP20 front-face protection rating, this device is ideal for use in harsh environments. Suitable for panel installation with compatible mounting options, it offers flexibility and ease of use. Perfect for industrial and commercial applications, this magnetic contactor ensures safe and reliable operation in power circuits up to 690 V AC and control circuits at 24 V AC.
Top product features:
- The SCHNEIDER ELECTRIC IEC Magnetic Contactor includes a 24 V AC coil.
- It has 1NC/1NO auxiliary contacts.
- It has a non-reversing function.
Top product applications:
- Motor circuit applications
- Resistive-load circuit applications
- Panel installation with compatible mounting options
The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for use in motor and resistive-load circuit applications within specified parameters. It includes a 24 V AC coil, auxiliary contacts (1NC/1NO), screw terminals, and a protective cover. This device belongs to the TeSys Deca range (LC1D series) and is furnished with Everlink Power Connections, intended for panel installation with compatible mounting options. It is rated for operation within specified voltage ranges: power circuit up to 690 V AC
- control circuit at 24 V AC, with an IP20 front-face protection rating as per specifications and mounting on rail or plate.
Key features
- - Coil voltage: 24 V AC
- - Poles: 3
- - Auxiliary contacts: 1NC/1NO
- - Non-reversing
- - Series/Range: LC1D, TeSys Deca
- - Mounting: Plate, Rail
- - Terminal type: Screw
- - Protection: IP20 front-face protection rating as per specifications
- protective cover included
- - Includes: Everlink Power Connections
- - Rated operational voltage: Power circuit up to 690 V AC (25–400 Hz) and up to 300 V DC
- - Control circuit voltage: 24 V AC (50/60 Hz)
- - Utilisation category: AC-1, AC-3, AC-3e, AC-4
- - Net weight: 0.86 kg
- - Dimensions: 55 mm wide
- 122 mm high
- 120 mm deep
- - Rated making capacity: 140 A (signalling), 250 A (DC signalling), 1000 A @ 440 V (power circuit)
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.87
