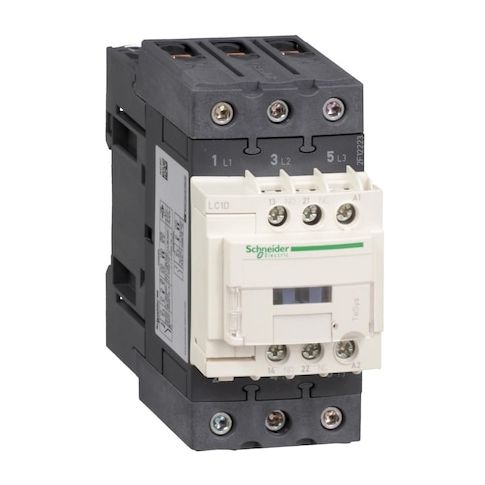

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D50AM7

• The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It utilizes an electromagnetic coil for switching functions within its rated electrical parameters. This unit is a 3-pole, non-reversing model with a 220 V AC coil and a 1NC/1NO auxiliary contact. It belongs to the LC1D series and includes protective cover and compatible power connection options. It is mounted on plate or rail and has dimensions of 55 mm wide, 120 mm deep, and 122 mm high, with a net weight of 0.855 kg. Rated for operation at voltages up to 690 V AC / 300 V DC within specified conditions.

  - Poles: 3

• Auxiliary contacts: 1NC/1NO
• Reversing: non-reversing
• - Coil voltage: 220 V AC
• - Series: LC1D
• Mounting: Plate, Rail
• - Dimensions: 55 mm W x 120 mm D x 122 mm H
• Net weight: 0.855 kg
• - Protection and accessories: IP20
• Includes protective cover
• Includes compatible power connection options
• - Rated voltage: rated for operation at voltages up to 690 V AC / 300 V DC within specified conditions
• - Rated making capacity: 140 A (AC Signalling), 250 A (DC Signalling), 900 A @ 440 V (Power) -> has a rated making capacity based on tested electrical ratings under specified conditions
• - Full load current: Resistive 80 A
• Inductive 50 A -> supports full load currents up to these values when operated within its specifications
• - Short-time withstand current: 400 A (40°C 10 s), 810 A (40°C 1 s), 84 A (40°C 10 min), 208 A (40°C 1 min) -> can withstand short-term surge currents according to tested ratings under controlled conditions
• - Inrush/holding: Inrush VA 140–160 VA
• Hold VA 13–15 VA -> consumes specified inrush and holding volt-amperes during normal operation within design limits
• - Impedance: 1.5 mΩ
• Impulse withstand voltage: 6 kV -> has impedance characteristics and impulse withstand capabilities consistent with industry standards
• - Max temperature: 850°C
• Working height: Up to 9842.52 ft -> designed for use in environments with temperatures up to this level and altitude ranges as specified
• - Standards: EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, CSA and others
• - Mechanical and electrical durability: 6 Mcycles (mechanical) and various electrical ratings by circuit type
• - Non-Overlap time: 1.5 ms
• Operating times: 4–19 ms (Opening), 12–26 ms (Closing)
• - Terminal connection: Screw clamp (control circuit) and EverLink screw connectors (power circuit)
• - Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
• - Fire rating: UL 94 V1
