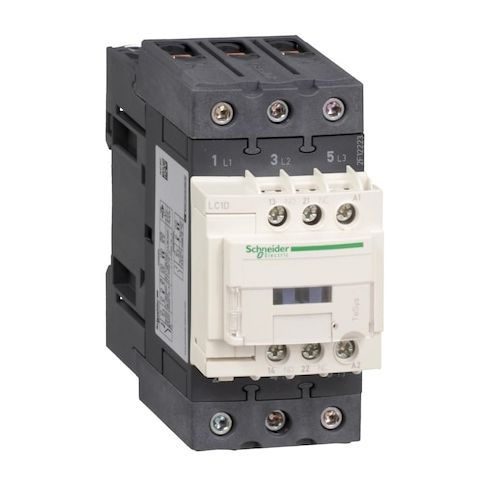

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, nonreversing, Screw Clamp MPN:LC1D40AM7

• The Schneider Electric IEC Magnetic Contactor (LC1D series) is a 3-pole, nonreversing, electrically operated switch rated for operation within specified load types as per manufacturer specifications. The device includes a 220 V AC coil

• auxiliary contacts are mechanically linked
• connections are made via specified terminal types. Power connections compatible with standard installation practices. Includes protective cover
• IP20 front-face protection according to standards. Suitable for plate or rail mounting as per installation guidelines. Net weight 0.85 kg.

  Key features

• - Coil voltage: 220 V AC
• - Poles/contacts: 3P
• main contacts 3 NO
• auxiliary contacts: 1NC/1NO (mechanically linked)
• - Reversing capability: Nonreversing configuration as specified by design
• - Connections: Control circuit screw clamp terminals
• Power circuit connections via specified terminal types
• Power connections compatible with standard installation practices
• - Protection: Protective cover included
• IP20 front-face protection according to standards
• - Mounting: Suitable for plate or rail mounting as per installation guidelines
• - Fuse ratings: Fuse ratings are provided for reference
• proper fuse selection should follow applicable standards and application requirements
• - Rated currents: Rated currents based on tested conditions within specified categories
• - Rated making capacity: Making capacity values provided under specific test conditions in accordance with standards
• - Impedance: Impedance value measured under test conditions
• actual impedance may vary depending on operating environment
• - Insulation voltage: Insulation voltage ratings based on testing parameters within specified limits
• - Inrush VA: 140 VA (60 Hz)
• 160 VA (50 Hz)
• - Hold-in power: 13 VA (60 Hz)
• 15 VA (50 Hz)
• - Watts loss: 4 to 5 W
• - Dimensions/weight: Height 122 mm
• Width 55 mm
• Depth 120 mm
• Net weight 0.85 kg
• - Series: LC1D
• - Standards: EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 508
• CSA
• CCC
• GOST
• THIEC 60068-2-30
